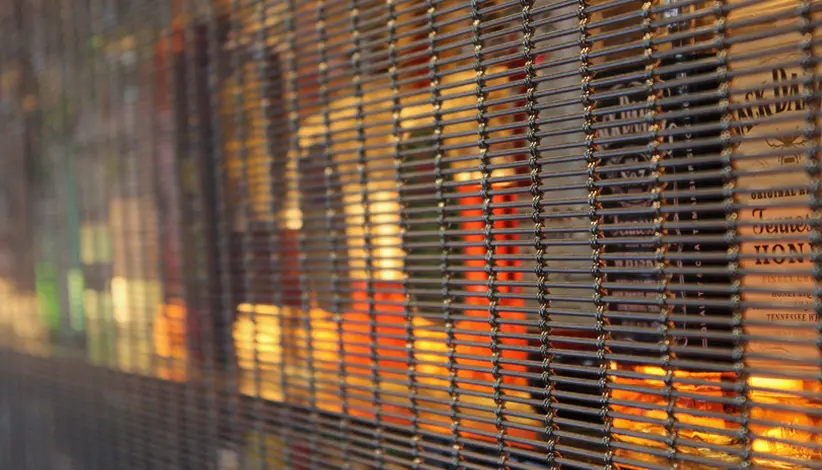

SteelWeave^® Metal Mesh Grille

Woven Metal Mesh Grilles

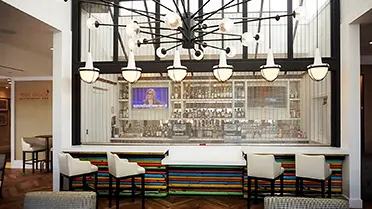

These security grilles and mesh counter doors are versatile — perfect for securing a service or food counter, or for gaining attractive floor-to-ceiling protection. We build SteelWeave mesh security grilles and counter doors to your specifications. Their design allows for simple installation in a new build or an existing business without requiring structural modifications.

Elegant Mesh Security Grilles and Metal Mesh Counter Doors

We make our SteelWeave grilles and mesh counter doors custom to your order and specifications for a perfect fit. These products are fully customizable and available in three design styles to fit your entryway and preferences, including:

• Aesthetic Conceal (EAG10C): The Aesthetic Conceal model features durable aluminum guides set into the wall for a hidden look, with a visible stainless steel bar running across the bottom of the grille.
• Aesthetic Reveal (EAG10V): Aesthetic reveal designs feature visible, stainless steel guides along the sides and a stainless steel bottom bar for a polished look, adding decorative appeal to your entryway.
• Service (EAG10S): Our service mesh security grilles deliver a cost-effective security solution for loading docks, storage rooms and other practical applications while keeping all the advantages of the SteelWeave design.

Sizes

Standard construction for Tigris curtain up to 25' wide by 20' high.

Standard construction for Lago curtain up to 19' wide by 20' high.

For openings that fall outside of the standard construction, please contact us.

Usage

The SteelWeave™ Metal Mesh Grille is constructed for daily use with a 50k lifetime usage of the grille. The daily cycle usage is dependent on the operator that is being used.

Standard Materials & Finishes

Standard materials and finishes will vary based on the model that is chosen.

Aesthetics

SteelWeave^® Metal Mesh Aesthetics

SteelWeave Metal Mesh is extremely customizable. With two standard curtain designs we are sure to offer something that goes with your existing design scheme.

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

SteelWeave Metal Mesh Grille Windload

SteelWeave Metal Mesh Grille offers the below windload options:

• 9 PSF for Lago
• 10 PSF for Tigris*

*Higher PSF may be available. Please contact your representative if a higher PSF is needed.

Safety & Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection.

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*

*Not compatible with NEMA 7/9 operators

SteelWeave^® Metal Mesh Grille Safety & Protection

Locking mechanism is an available option.

Operator Options

SteelWeave^® Metal Mesh Operator Options

The EverGard Tube Motor operator is ideal for openings with tight clearances around the coil area, when you need to neatly conceal the drive components without adding a bulky motor cover and for door control during a loss of power.

Grille Curtain Construction

SteelWeave® Metal Mesh Grille Curtain Construction
