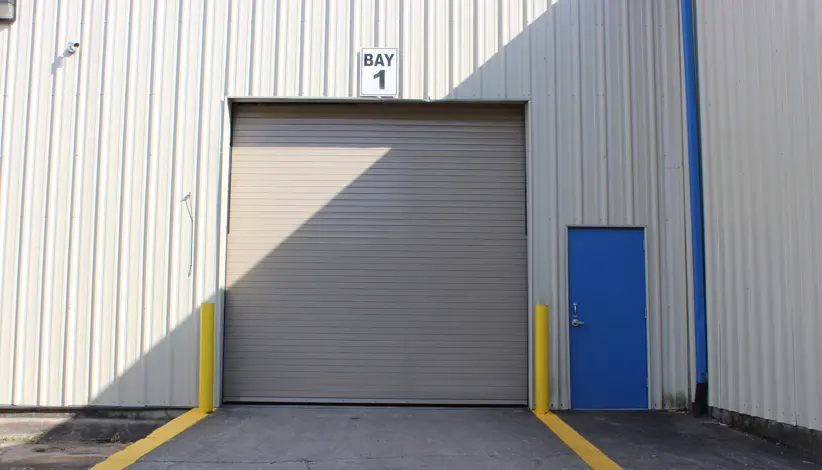

Higher Speed Overhead Door
Our APEX Pro SmartController™ features an intelligent control panel with plug and play wiring that makes installing and servicing the 300 series rolling door easier than ever before.
The commercial roll up door’s compact operator features smooth high speed operation that ensues a soft start and stop – reducing wear and tear on both the overhead door and the rolling door operator. When you need a higher speed doors, our 300 series high performance door operates at speed of up to 24 inches per second. With the operator’s direct drive design, there’s no sprocket and chain to wear or replace.
Faster rolling doors mean reduced air exchange, but our 300 series overhead door goes further to improve energy efficiency. Insulated high performance door models feature our patented Thermiser Max rolling door perimeter sealing system – which meets ASHRAE® 90.12, 2015 IECC® and California’s Title 24 air infiltration requirements with an independently tested value of ≤0.3 cfm/ft2.
When you need a rapid opening, precision garage door, our Extreme 300 Overhead high performance door is the only commercial garage door you will ever need!
Sizes
Service Door Curtain:
- Standard construction up to 30' wide, 20' high
Insulated Door Curtain:
- Standard construction up to 24' wide, 20' high*
*Maximum allowable for height and width independently. Not all configurations available for combined maximum widths and heights. Please consult factory for more information.
For openings that fall outside of the standard construction, please contact us.
Usage
These doors are constructed for continuous use and are warrantied up to 300,000 cycles (or two years). Need more than 300,000 cycles, but less than a million? This door can be upgraded to offer 500,000 cycles with a 3 year warranty.
If you have an opening that only needs standard cycles, meaning less than 20 cycles per day, please consider our standard service or insulated product lines.
Standard Materials & Finishes
Extreme® 300 Series Performance Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:
- Galvanized Steel:
- Finished with a rust-inhibiting CycleShield® finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
- Friction and wear-resistant for high-cycle applications
- Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
- Recommended for exterior, corrosive and/or abrasive environments
- Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.
- 300 series stainless steel with a #4 finish
Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.
Extreme® Series Door Drive & Control System
This door features our first intelligent control panel - the APEX Pro SmartController™. It features:
- Plug-and-play connections between the motor, control panel, and standard sensors
- LCD screen that walks user through
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments
This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety.
