Specifying Thermally Broken Rolling Doors for Efficient Buildings
Large-scale openings have long been a pain point in commercial building design. Luckily, modern insulated rolling doors make it easier than ever to maximize energy savings and envelope efficiency. The challenge with standard insulated doors is that while the core insulation may be strong, failing to eliminate metal-on-metal contact points puts you right back at square one with energy loss.
Thermiser Max® - Low U Insulated Door with thermal break construction.
Without thermal breaks, these conductive points create thermal bridges that seriously undermine the door’s performance. For architects, designers, and specifiers aiming for an energy-efficient building envelope, it’s important to have a good understanding about how thermal breaks work. Follow our guide to specifying high-performance, thermally broken insulated rolling doors.
Key Takeaways
- • Remove Metal-on-Metal Contact: Traditional insulated doors often overlook structural joints. To stop energy loss, specify assemblies that use low-conductivity materials (like CPVC backers) to break continuous conductive pathways.
- • Look Beyond Slat R-Value: Real-world efficiency is measured by the entire assembly's performance. Focus on a verified whole-assembly U-factor, found on the industry-leading 0.532 U-factor achieved by the Thermiser Max® Low-U door system.
- • Address All Four Vulnerable Zones: A truly energy-efficient building envelope requires addressing thermal bridging across all four parts of the rolling door system: the curtain, the guides, the hood, and the bottom bar.
- • Design for Code and Compliance: Specifying thermally broken rolling doors is a critical step in meeting strict modern energy codes, achieving net-zero building requirements, and preventing costly interior condensation issues.
Note On R-Value Vs. U-Factor
Many specifiers only look at the insulation's R-value (the material's thermal resistance). However, if the metal faces of a door touch at the joints, heat bypasses the insulation entirely.

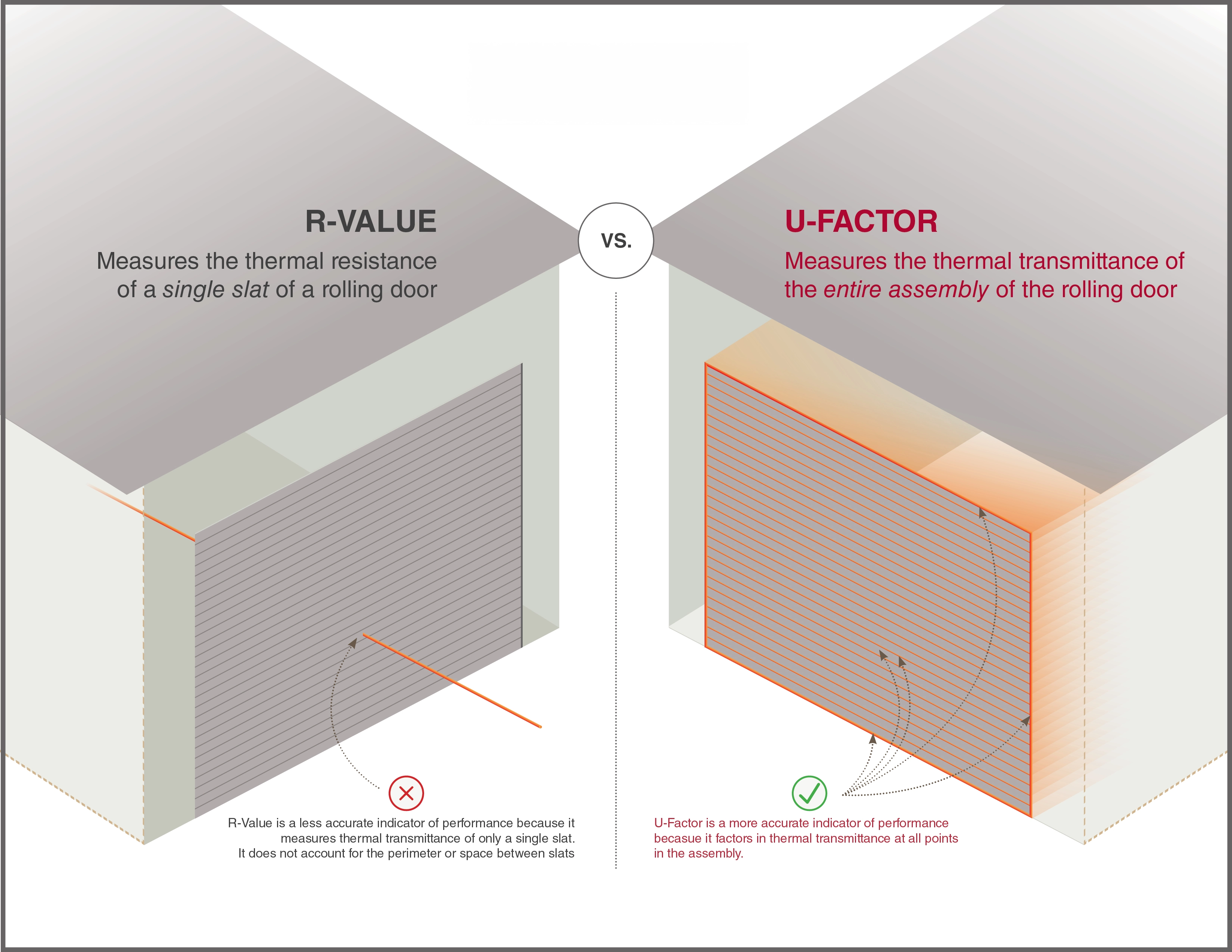

For true performance, look for U-factor, which measures the rate of heat transfer through the entire assembled door system. A lower U-factor means a tighter, more efficient building envelope.This infographic illustrates why whole-assembly U-factor provides a more accurate, real-world measurement of rolling door energy efficiency than slat-only R-value.
-copy.webp?sfvrsn=5a1b03cf_1 "Clopay R-Value and U-factor")
This infographic illustrates why whole-assembly U-factor provides a more accurate, real-world measurement of rolling door energy efficiency rather than R-value.
What Is A Thermal Break?
When two highly conductive materials (like the interior and exterior metal slats on the curtain of an insulated rolling door) come into direct contact, it creates a high-speed pathway for thermal transfer. These pathways are called thermal bridges. Without thermal breaks, the door system will contribute to massive energy loss:
- In cold climates: Thermal bridges act as escape routes for expensive heated indoor air.
- In warm climates: Thermal brides welcome outdoor heat inside, forcing HVAC systems to work double-time.
The solution is the thermal break. By introducing a low-conductivity material, such as CPVC, between the curtain components, the thermal highway gets severed, significantly slowing heat transfer through the door assembly.
4 Rolling Door Components to Specify for Thermal Efficiency
Designing for energy efficiency and thermal comfort isn’t easy, especially in buildings with large openings. That’s why specifying the right insulated door is so important. Whether you are managing extreme local climates or navigating strict building codes like net-zero energy requirements, an insulated rolling door with thermal breaks and a robust perimeter seal is a clear, effective solution.
We’ll go beyond core insulation to explain exactly where thermal bridging occurs on a door assembly—and what to write into your specifications to mitigate it.
1. The Curtain
Made of interlocking metal slats, the curtain is the primary moving part of the door assembly. Standard insulated doors will have double-wall construction, with interior and exterior metal skins separated by an insulated core. This causes direct metal-on-metal contact where the skins meet at the interlocking joints.
| What To Specify | The Benefits |
|---|---|
| Select a double-wall curtain design, like that found in our Thermiser Max® Insulated Rolling Door, which is engineered with low-conductivity CPVC backers rather than standard aluminum or steel backing components. |
|
2. The Guides
Guides are the vertical track assemblies mounted to each side of the door opening that retain, align, and support the curtain during operation. Mounted on the building jambs, these components tend to cause air leakage and heat transfer.
| What To Specify | The Benefits |
|---|---|
| Choose engineered thermally-broken guide assemblies over standard weather seals and guides. |
|
3. The Hood
The hood protects the coiled curtain at the top of the opening. It's effective as both an aesthetic and protective cover. Warm air naturally rises and accumulates at this area, making the hood is a major zone for energy loss.
| What To Specify | The Benefits |
|---|---|
| Specify insulated hood construction with tight-fitting joints, and a heavy-duty perimeter weather seal. | This combination limits air leakage and reduces heat loss where warm air naturally accumulates above the door. |
4. The Bottom Bar
The bottom bar is attached to the end of the curtain and supports the slats, meeting the floor when the door is closed, serving as the critical barrier at the sill. Without proper sealing and gaskets, this area is prone to air leakage.
| What To Specify | The Benefits |
|---|---|
| Select heavy-duty bottom bars featuring continuous, compressible seals or edge gaskets. | Continuous, compressible seals and edge gaskets conform to floor irregularities, ensuring a tight, reliable seal that stops cold drafts and moisture at the foundation. |
Where Thermally Broken Doors Matter Most
While any building envelope benefits from thermally efficient doors, there are certain commercial environments where they are required to control temperature differentials, humidity, and condensation.
Warehouses & Loading Docks
Cold Storage & Food Processing
Commercial & Retail Storefronts
Educational & Shared-Use Facilities
Little Details, Big Impact
As building codes tighten and the demand for high-performance, sustainable architecture grows, no detail is too small. By understanding how thermal breaks function within rolling doors—from the slats to the guides—you can specify with confidence, securing a tight, high-performance thermal envelope that stands the test of time.
