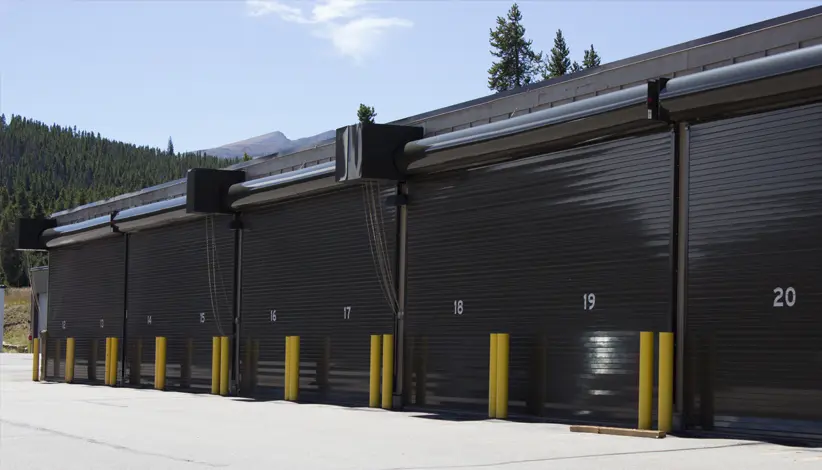

Thermiser Max^® Insulated Rolling Door

Energy Efficient Insulated Rolling Doors

Our Thermiser Max^® Insulated Rolling Door is today’s most energy efficient rolling door.

Our exclusive full perimeter door sealing system, combined with thermally broken guide construction and insulated curtains, minimizes air infiltration and thermal transference.

A green, energy efficient, thermally insulated roll up door that delivers a 94% decrease in air infiltration compared to standard products and can contribute to green building ratings. Because we care about the environment as much as you do, this overhead insulated door can help you achieve up to 38 points in five LEED certification credit categories.

Our commercial insulated door sealing system not only significantly reduces air infiltration but also reduces sound transmission. Sound Transmission Class (STC) rating is up to 30 for the entire assembly. If an STC of 32 is desired, additional options are required. Please consult the factory for details. All configurations are evaluated per ASTM E90, based on testing a complete, operable assembly.

Usage

These doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

If your requirements call for more than 20 cycles per day, high cycle construction is available.

Available Operators

Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.

• Model MG: A medium duty operator for doors that will cycle less than 20 times per day
• Model SG: A super duty, full logic operator for larger doors or doors that may periodically cycle more than 20 times per day
• EverGard: Features a battery backup system that will last a minimum of 48 hours after power loss. This allows users to operate the door in the same manner as when there is AC power for up to 10 cycles
• NEMA 7/9: Multiple sensing device and intrinsically safe board
• NEMA 4/12 & NEMA4X: Waterproof SGH operator, suitable for low pressure direct spray.

Standard Materials & Finishes

Configuration:

Double skin interlocking roll formed interior and exterior metal slats :

• R-value of 8 as calculated using the ASHRAE Handbook of Fundamentals

Slats are filled with 7/8" thick closed cell pressure foamed in place urethane insulation:

• Flame Spread Index of 0
• Smoke Developed Index of 10 as tested per ASTM E84
• CFC-free process with an Ozone Depletion Potential rating of 0
• Meets foam plastic insulation requirements of the 2012 IBC^®, section 2603

Slats available in:

Galvanized Steel:

• Exterior Slat Gauge 24 / Interior Slat Gauge 24 - Brown, Gray, Tan, White, Black
• Exterior Slat Gauge 22 / Interior Slat Gauge 24 - Gray, Tan
• Exterior Slat Gauge 22 / Interior Slat Gauge 22 - Gray, Tan
• Exterior Slat Gauge 20 / Interior Slat Gauge 24 - Brown, Gray, Tan, Black
• Exterior Slat Gauge 18 / Interior Slat Gauge 24 - Gray, Tan, White

Stainless Steel:

• Exterior Slat Gauge 22 / Interior Slat Gauge 22 - #4 finish
• 300 series in #4 finish
• 316 stainless steel in #4 finish

Aluminum:

• Exterior Slat Gauge 18 / Interior Slat Gauge 18 - Mill, Clear, Color Anodized Finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

• Commercial Tan
• Commercial Gray
• Charcoal
• Standard White
• Chocolate Brown
• Black

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

One-way vision windows allow occupants to only see out offering a perfect balance of natural light, enhanced security, and privacy.

Chain Diverter for MGH Operators

This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.

Trim Package

In applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Vibration Isolators

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.

*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Safety & Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection.

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*

*Not compatible with NEMA 7/9 operators

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

HDBB (Heavy Duty Bottom Bar)

The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.

RapidResponse

doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Wind Load

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Superimposed Doors

Combine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.
