Side Folding Gates

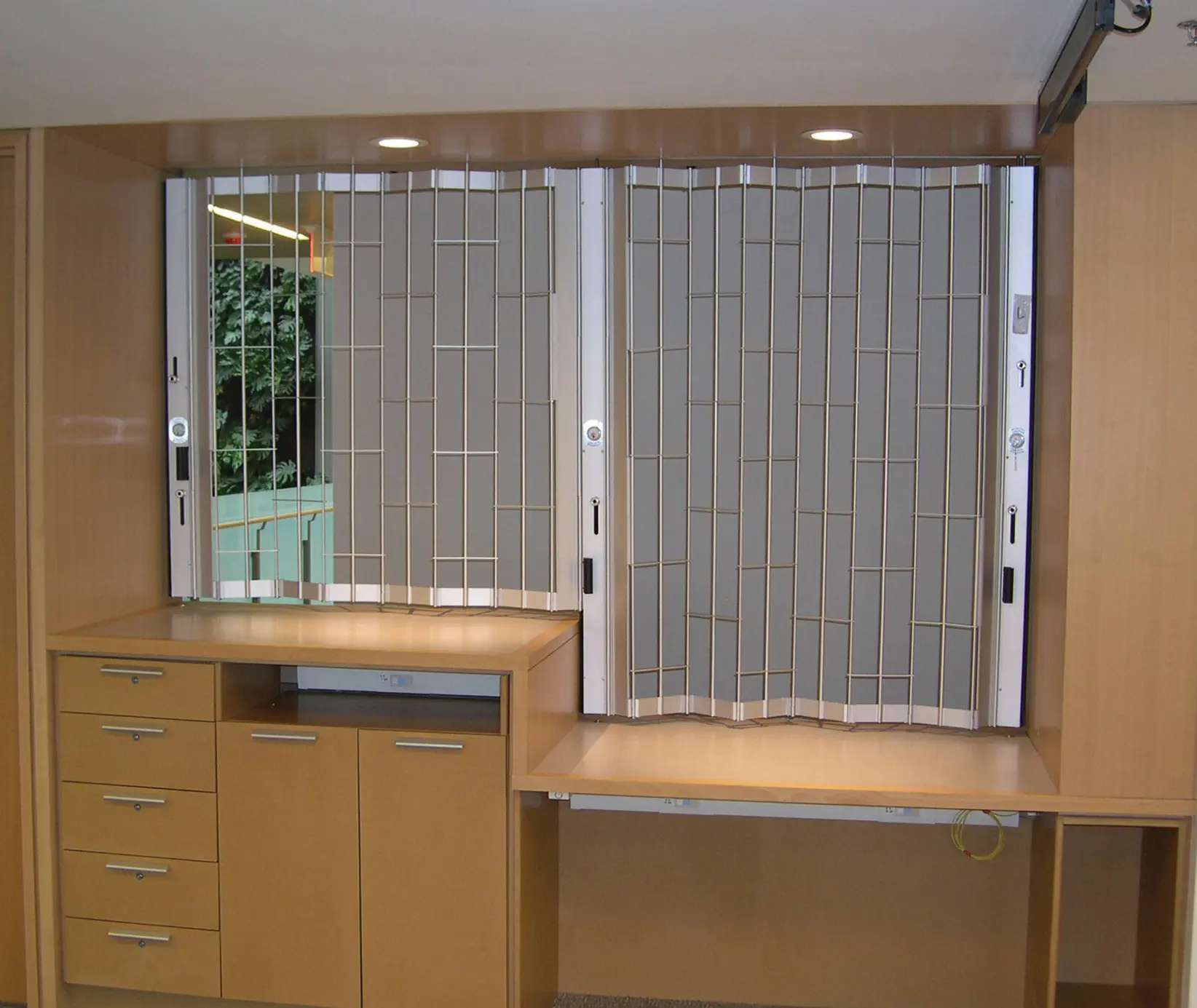

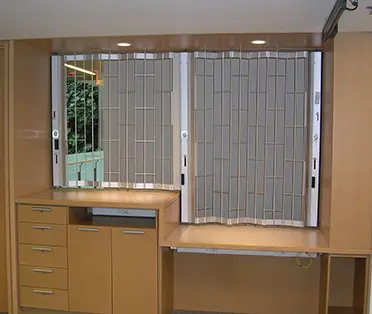

Side folding grilles require less headroom clearance than rolling grilles. The VisionGlide™ curtain is formed with a series of vertical 5/16" diameter aluminum rods on 3.5" centers. Horizontal chains formed of eyeletted aluminum links are spaced at 12" apart. Vertical hanger rods mounted to rollers that slide in the overhead track support the curtain.
Standard Features:
- Clear anodized rods, links and post material
- PVC tube spacers, polycarbonate hinged top and bottom panels to match
- Fully anodized version optional
- 12" link spacing standard
- 9", 6" or 3" spacing optional
- Hook bolt locking with cylinders both sides standard, other locking optional
- Fully anodized version optional
Sizes
- Standard construction up to a maximum height of 12' 0"
- Maximum recommended width of a single unit section is 30’0” – larger openings would require a multi-section curtain
- Minimum width is 2’0”, minimum height is 4’0”
- For openings that fall outside of the standard construction, please contact us
Usage
Constructed for manual push/pull operation with a daily use limit of up to 20 cycles per day.
Track Information
Extruded heavy-duty aluminum section 1 3/4" high by 1 5/16" wide track mounts to the overhead structure to support the entire unit. No floor track is required. Track required for curved openings has a standard 14" radius: 90°, 120°, 135° and 150° curves are standard.
Of note, custom radius angles are also offered, please contact us. Multiple connecting sections can be incorporated. Bi-Part opening is also available.
