VertiStack^® Clear

Compact Stacking Door

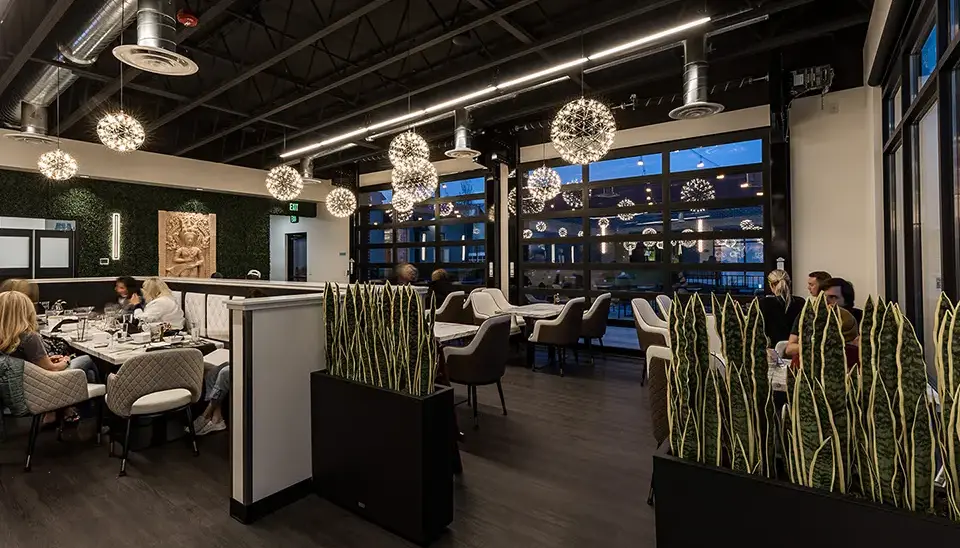

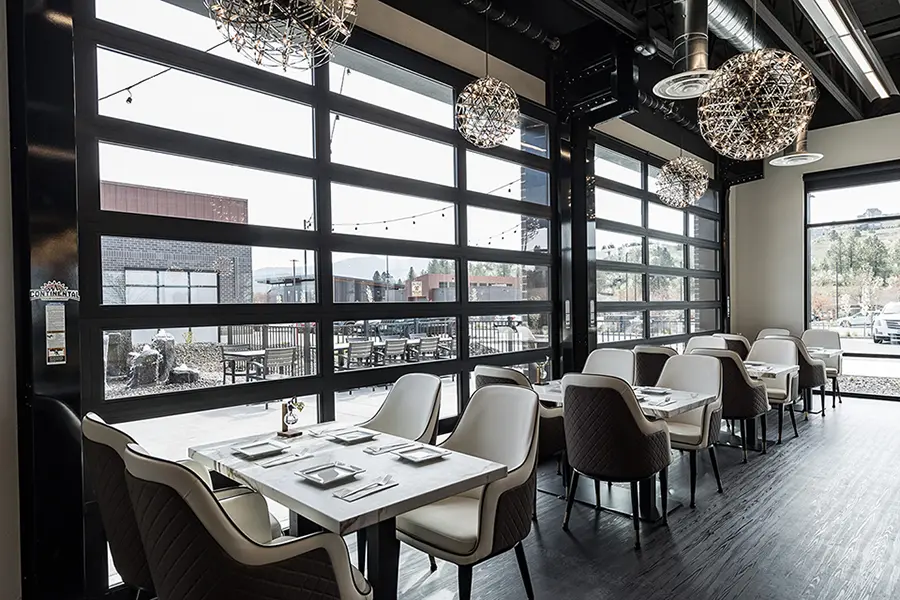

VertiStack Clear allows you to bring the outside in. When in the closed position, the glass panels let in ample sunlight to offer warm hospitality. When in the opened position, indoor seating can be extended to the outside areas, creating a flow between interior and exterior spaces. The built in gasket makes this door IECC compliant for air infiltration, keeping patrons comfortable and reducing energy usage when in the closed position.

Designed for commercial applications, this stacking sectional door can be used in restaurants, retail, office buildings, educational facilities and any application with limited ceiling space.

VertiStack clear is available with a motor operator or a manual operated hand chain.

The model VS904UL features Intellicore® polyurethane insulated rails and stiles.

Sizes

Minimum Opening Width*: 4'6"

Maximum Opening Width*: 20'

Minimum Opening Height: 4'

Maximum Opening Height: 14'

*The door width will always be 6" wider than the opening width, so door width range is 5' to 20'6".

Locking

Manual lock integrated into each guide cover

Certifications

• Meets ASHRAE 90.1 and IECC ( International Energy Conservation Code) 2021 section C406.9 Air Infiltration requirements with an independently tested value of 0.2cfm/ft2
• U-Factor as low as .76

Glass Options

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.

*Tempered glass options available

Finish Options

Operators

Motor Operators - Operates the door at the push of a button. Includes an auxiliary hand chain for emergency use only.

Manual Hand Chain Operator - No power needed. Allows the door to operate with a manual hand chain hoist.

Safety & Protection

Safety Features - Photo eye sensors that are integrated into, and concealed by, the guide covers.

Wireless Sensing Edge - A wireless sensing edge is only available on doors that have a height greater than 53”.

Strap brake safety system - Installed in the bottom-most section of the door and within the wall angles, this system deploys in the event of tension loss to the straps. The system will release the brake lever and engage the brake teeth, stopping the bottom and subsequent sections from falling.

SafetyGard UL325 Approved Light Curtain - A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Windload

25 PSF Design Windload

Florida Product Approval #FL42132

Insulated Option

The model VS904UL features Intellicore^® polyurethane insulated rails and stiles.

Spring & Motor Covers

Optional spring and motor covers give VertiStack Clear Doors a more elegant and refined look with even more versatility.

Spring Covers

Provide a more design-driven look

Motor Covers

Conceal the operator for a more attractive look
