TruCycle Grille

Model: HCESG10 (straight) & HCESG12 (brick)

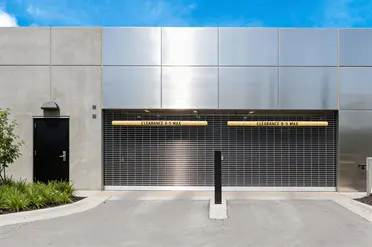

Your facility needs a security grille that provides protection, visibility, and airflow. The TruCycle™ Security Grille delivers the uptime and efficiency of a high-speed model, making an ideal match for high-traffic parking garages and busy retail storefronts. We've eliminated the springs, replacing them with a powerful direct-drive operator and a motor-mounted Variable Frequency Drive (VFD) for minimal maintenance and extended life. Paired with our smallest-ever APEX™ Core SmartController® for easy plug-and-play setup and from-ground commissioning, this grille delivers powerful reliability. Choose from brick or straight patterns to match your aesthetic. Enjoy total, hassle-free protection for your investment, backed by our industry-leading 3-year or 300,000-cycle warranty.

Overview

Sizes

Max Width: 30'4"

Max Height: 19'

For openings that fall outside of the standard construction, please contact us.

Usage

These grille are designed to handle heavy, continuous traffic.

To ensure consistent, cycle-to-cycle performance, every TruCycle Grille includes a powerful 3-year or 300,000-cycle warranty, whichever comes first.

Standard Materials & Finishes

The TruCycle Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

  • Brick Pattern
  • Straight Pattern

Curtains can come in the following finishes:

  • Mill
  • Clear anodized
  • Medium bronze anodized
  • Dark bronze anodized
  • Black duranodic

Operation

The TruCycle Grille utilizes a direct drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your grille system and ensuring quiet operation. The operator system pairs with the APEX Core SmartController®, putting reliable performance diagnostics at your fingertips.

Options

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Unique Features

APEX Core SmartController

This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.

Monitored Protection

Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.

120V Compatibility

The system is compatible with 120V input via an optional wall-mounted transformer. The required mounting space is 13.5" wide by 16.125" high.
