Firemiser Insulated Fire Door

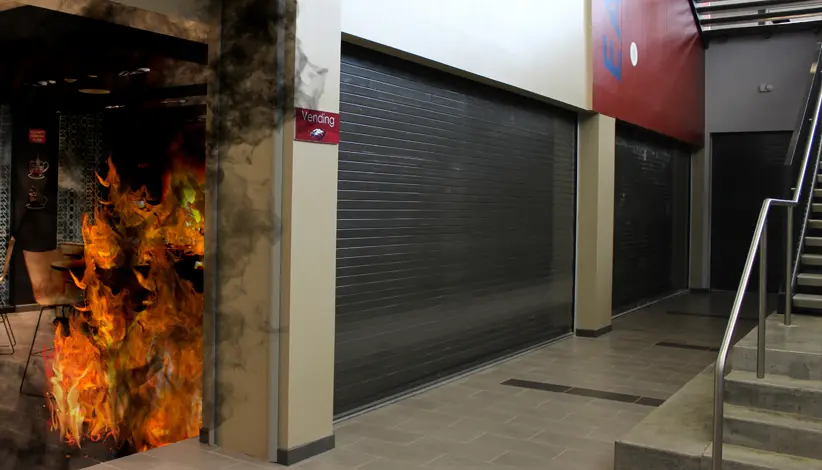

INSULATED ROLL UP FIRE DOOR SYSTEMS

The mineral wool used to insulate this door, helps to control sound transmission – featuring an R value of 5.3 and a U Value of .189 based on the ASHRAE Handbook of Fundamentals. The insulation also helps in a climate controlled environment by helping to maintain a different temperature on the interior and exterior of the door.

A Firemiser insulated fire door is perfect for an application that is currently exterior, but there is a planned expansion that will require the opening to be fire rated in the future.

Our insulated rolling fire door is UL listed, Factory Mutual Approved and listed with the California O­ffice of the State Fire Marshall. It is listed with a protection ratings of 45 minutes, 90 minutes, 3 and 4 hours.

Our fire rated insulated rolling doors are also available in model number ERD21 with a SmokeShield® seal package. This optional package controls smoke and drafts while conforming to UL1784. This seal package will ensure that the smoke will also compartmentalized with the flames.

Sizes

A standard UL labeled door is available up to 13.5’ wide by 12’ high.

An oversized UL labeled door is available up to 60’ wide or 40’ high or 1,200 Sq. Ft.

For openings that fall outside of the standard construction, please contact us.

Standard Materials & Finishes

Firemiser curtains are available in:

Steel

• Interior slat 24 gauge / Exterior slat 24 gauge: GalvaNex™ finish in Gray, Tan, White, Brown or Black provided as standard
• Interior slat 24 gauge / Exterior slat 22 gauge
• Interior Slat 24 gauge / Exterior slat 20 gauge: GalvaNex™ finish in Gray, Tan, White, Brown or Black provided as standard
• Interior slat 24 gauge / Exterior slat 18 gauge

Stainless Steel

• Interior slat 22 gauge / Exterior slat 22 gauge

Finish/gauge availability varies. Contact us for detailed finish/gauge availability.

Mounting Options

Insulated fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.

Fire Specific Options

SmokeShield^® Seal Package

Often required by local building codes, our smoke seal adds smoke and draft control.

Annunciators

Optional safety devices on provide a visual and/or audible advanced warning when the door is about to close.

Battery Back Up Devices

Available for motor, chain and crank operators, these devices prevent fire doors from closing from a power failure.

Firefly & Firefly BB Release Device

Optional device that ties in to a building alarm system and closes a FireGard fire door upon alarm activation, rather than by melting its fusible link.

Testing Stations

Safely and conveniently test and reset the functionality of the fire door at floor level. May be flush or recess mounted.

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

• Commercial Tan
• Commercial Gray
• Charcoal
• Standard White
• Chocolate Brown
• Black

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Trim Package

In applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.

Performance Upgrades

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Safety & Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection.

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*

*Not compatible with NEMA 7/9 operators

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Wind Load

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.
