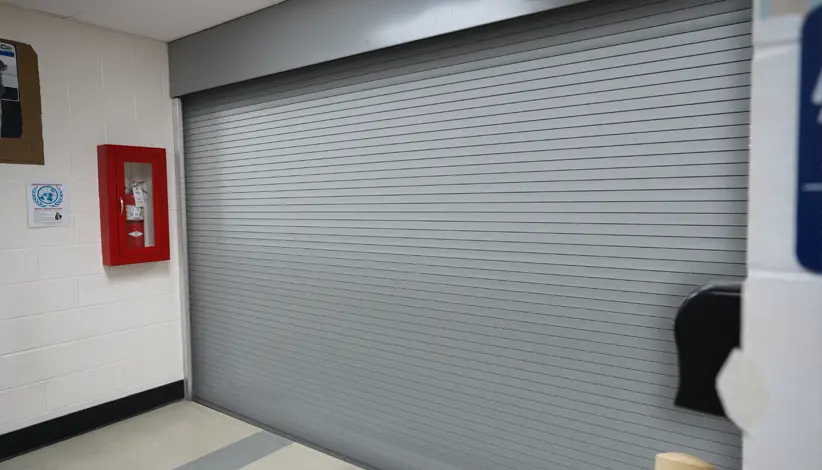

CrossingGard® Door with ThreatProtect

Model: ERD-TP

Our CrossingGard® Door with ThreatProtect™ takes your building’s security to the next level. Not every emergency response closure is the equal, that’s why we’ve built our door to integrate with your existing alarm systems. When your alarm signals a lockdown event or procedure, the door closes securely to zone your building. In other emergencies, the door opens to give evacuees an escape route.

Overview

Intelligent Emergency Response Rolling Door

Rolling steel and insulated doors feature solid galvanized steel curtains, preventing visual and physical access and is also available with a perforated curtain to provide first responders visibility. The CrossingGard® with ThreatProtect™ door comes standard with a UL 325-compliant safety edge, battery backup, and key override.

These egress doors are a smart solution for schools, higher education institutions, and medical facilities for both interior and exterior applications. Be prepared for anything - Safeguard your building with rolling doors that are ready when you need them most.

Sizes

Standard construction up to 20’ wide, 20’ high

For openings that fall outside of the standard construction, please contact us.

Standard Materials & Finishes

The CrossingGard Door with ThreatProtect comes standard with a steel counter-balance shaft and structural steel guides with powder coating to match curtain

Curtains are Galvanized steel with GalvaNex polyester enamel finish in Gray, Tan, White, Brown or Black.

The bottom bar comes standard heavy-duty extruded aluminum in mill finish.

Operation

The specialized ThreatProtect Operator features a battery backup that ensures the door will continue to operate in the event of a power outage.

This door also comes standard with a UL325 compliant sensing edge that prevents the door from closing on an object.

Options

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

  • Commercial Tan
  • Commercial Gray
  • Charcoal
  • Standard White
  • Chocolate Brown
  • Black

Hood Covers

Galvanized steel with GalvaNex polyester enamel finish to match the curtain.

Materials & Finishes

  • Aluminum in mill, clear or color anodized
  • Stainless steel 300 series in #4 finish
  • SpectraShield Powder Coating in more than 180 colors
  • For a more durable finish, upgrade to our GalvaNex Ultra or SpectraShield Ultra powder coat finish

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Safety & Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection.

Specs/Drawings
Model BIM Shop Drawing Specs Installation Manual Warranty
All Models
CrossingGard with ThreatProtect Service
Download
CrossingGard with ThreatProtect Thermiser
Download
CrossingGard with ThreatProtect Thermiser Max
Download
