Canyon Ridge® Carriage House (4-Layer)

The Canyon Ridge® Carriage House (4-Layer) door is another smart, stylish alternative to real wood—perfect for homeowners who want classic carriage house charm with none of the maintenance worries. Built with an energy-efficient Intellicore® polyurethane insulated steel core, this door is topped with moisture-resistant Clear Cypress composite overlays, capturing the rich texture of wood while standing strong against the elements. Unlike traditional wood, the composite overlay won’t warp, crack, or need constant touch ups, so it stays beautiful year after year.

This door has fully visible steel panels beneath the overlay, which you can finish in Ultra-Grain® for a stained wood look or paint in any color to match your home. The result is a versatile, low-maintenance garage door with all the warmth and character of wood, plus the added bonus of improved energy efficiency and durability. Whether you’re refreshing a historic home or just want a charming garage door, the Canyon Ridge® (4-Layer) makes it easy to get the look you love.

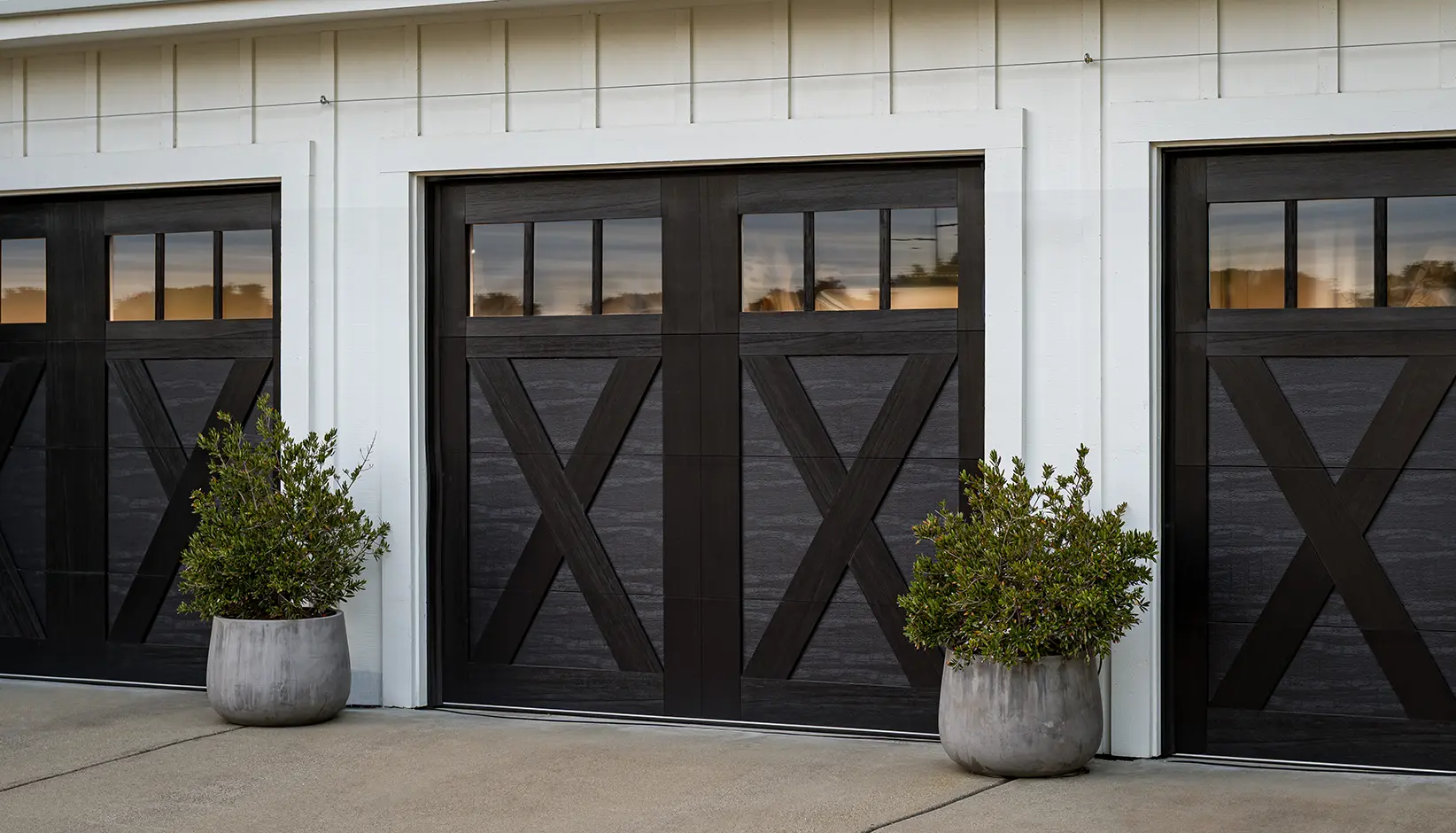

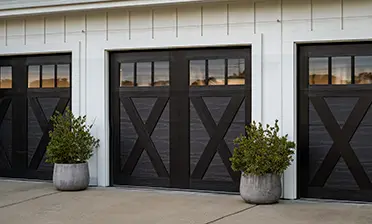

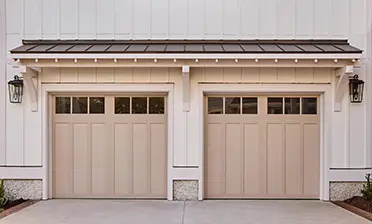

Canyon Ridge 4-Layer

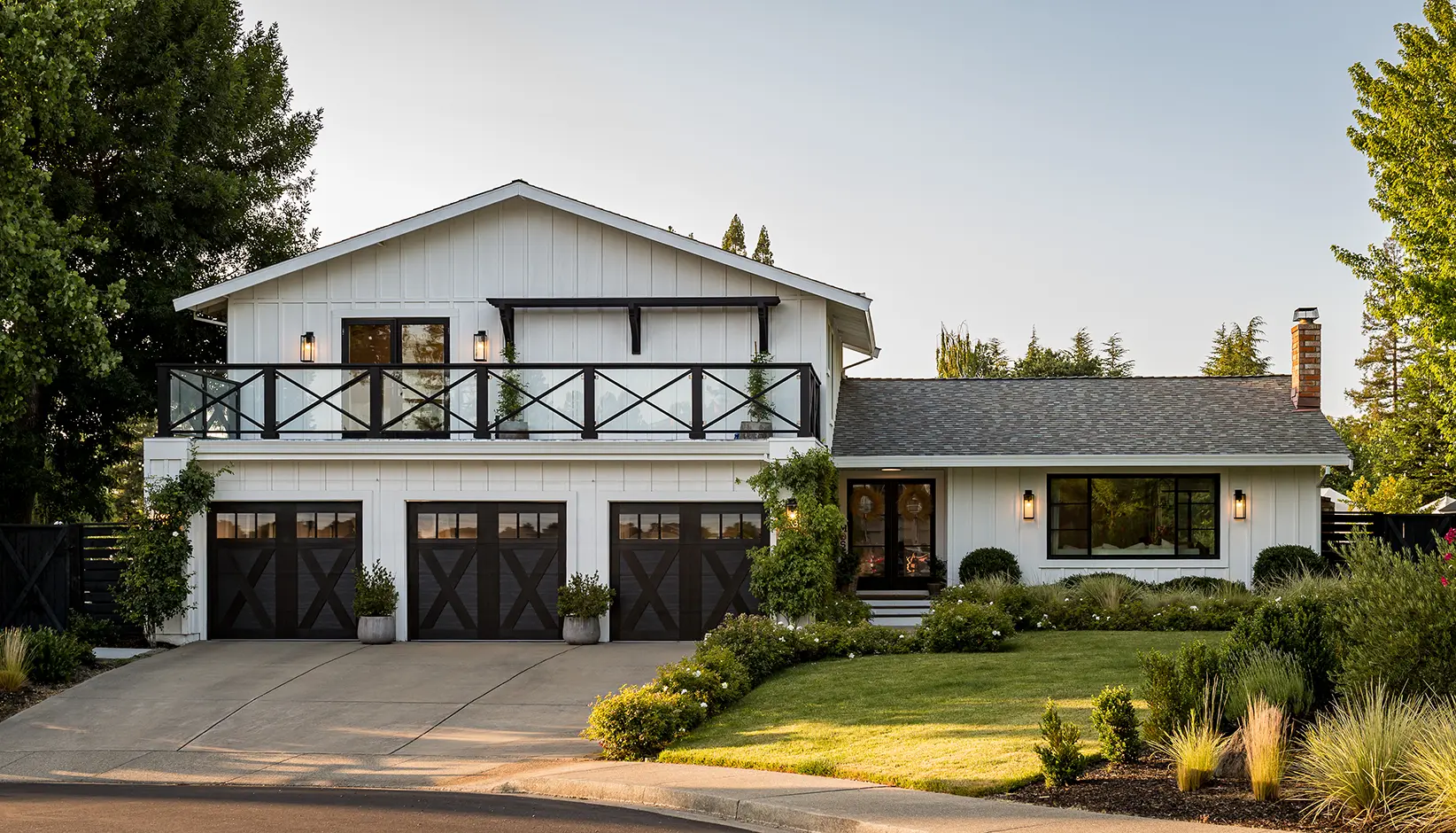

Canyon Ridge 4-Layer Design 21

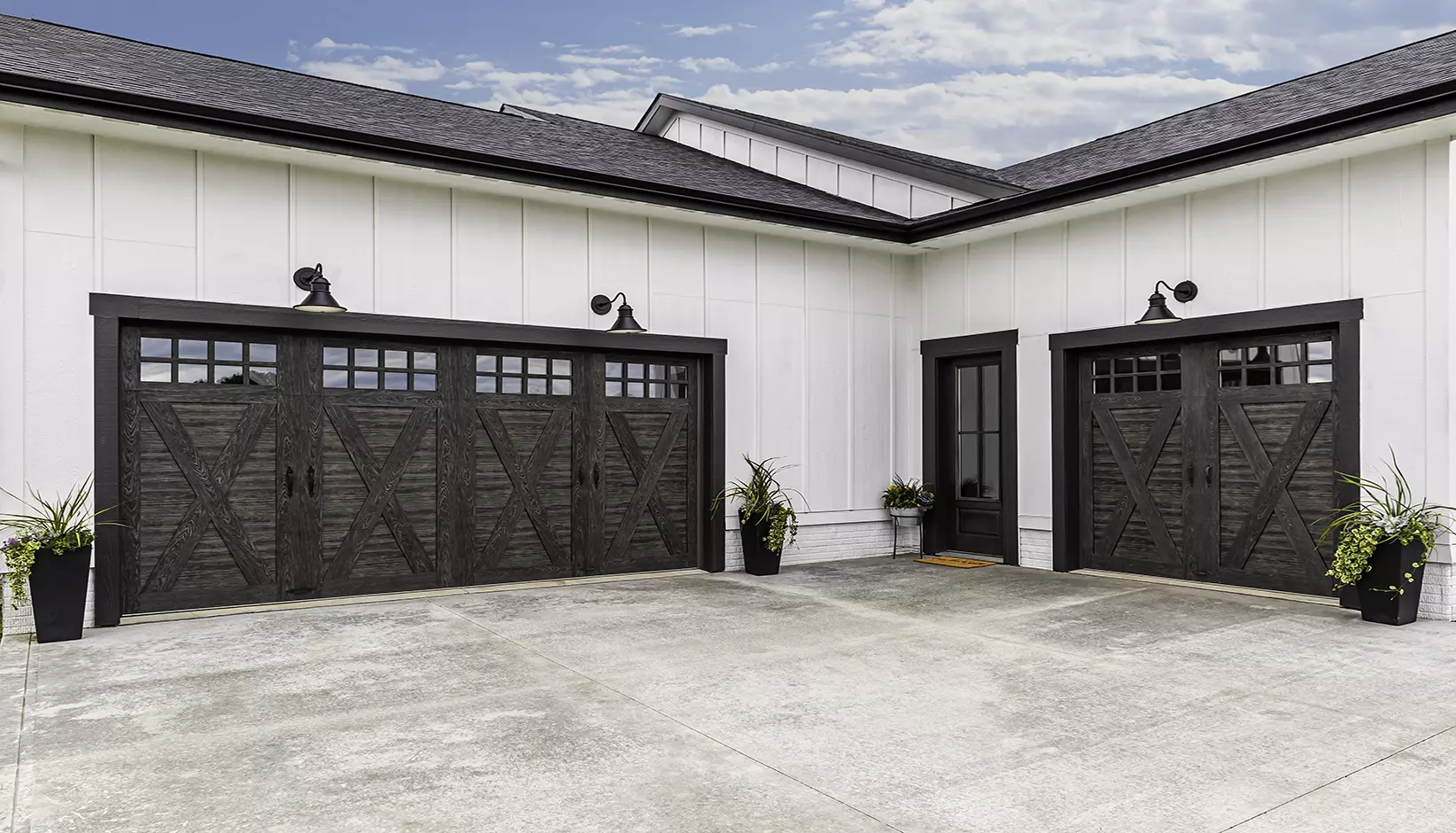

Canyon Ridge 4-Layer Iowa

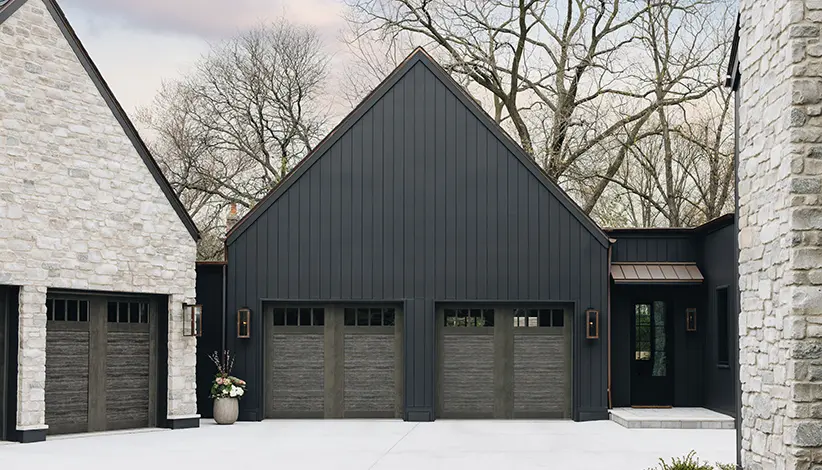

Canyon Ridge Ultra-Grain Slate
Canyon Ridge 4-Layer
Canyon Ridge 4-Layer

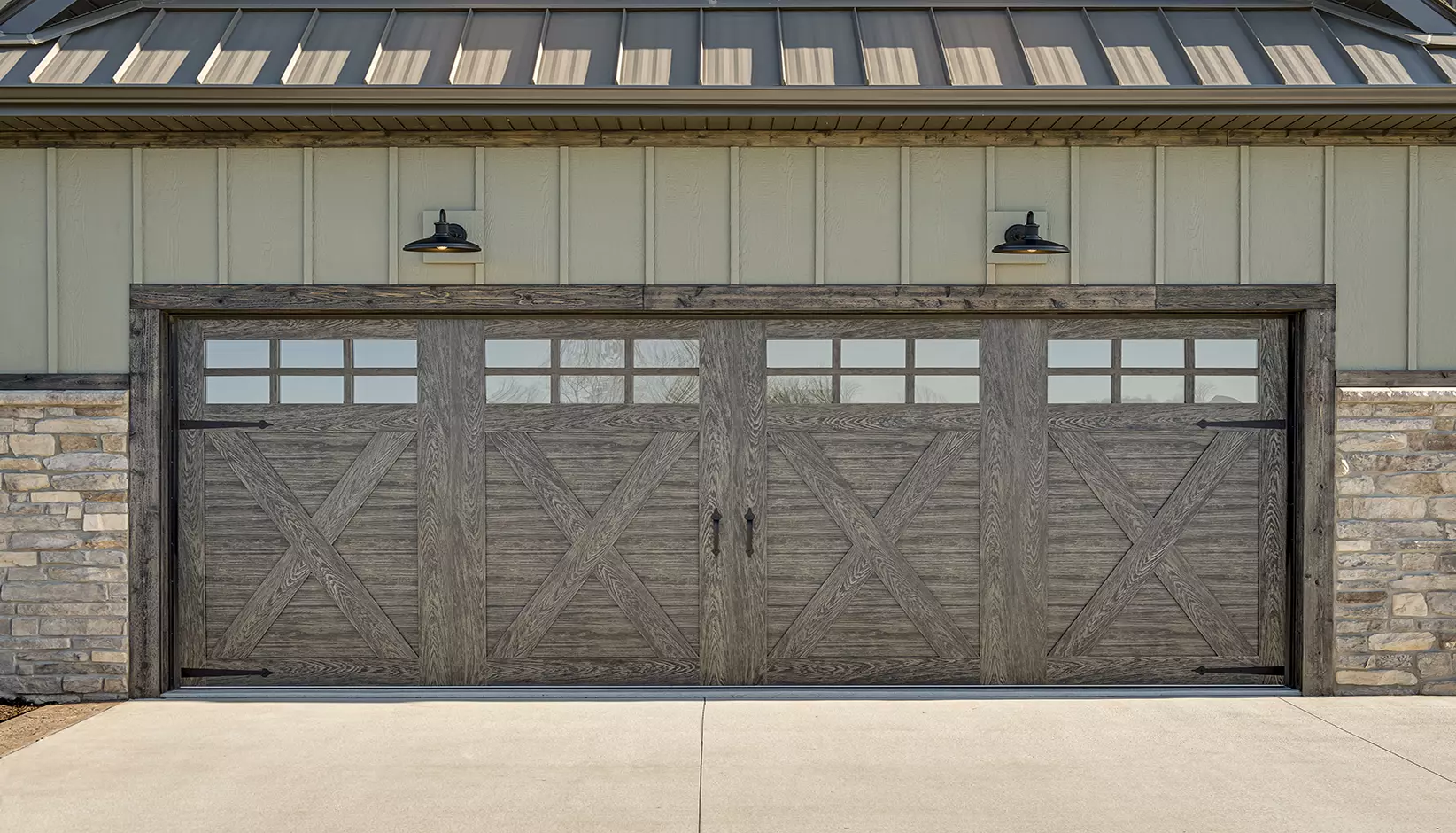

Canyon Ridge 4-Layer Slate

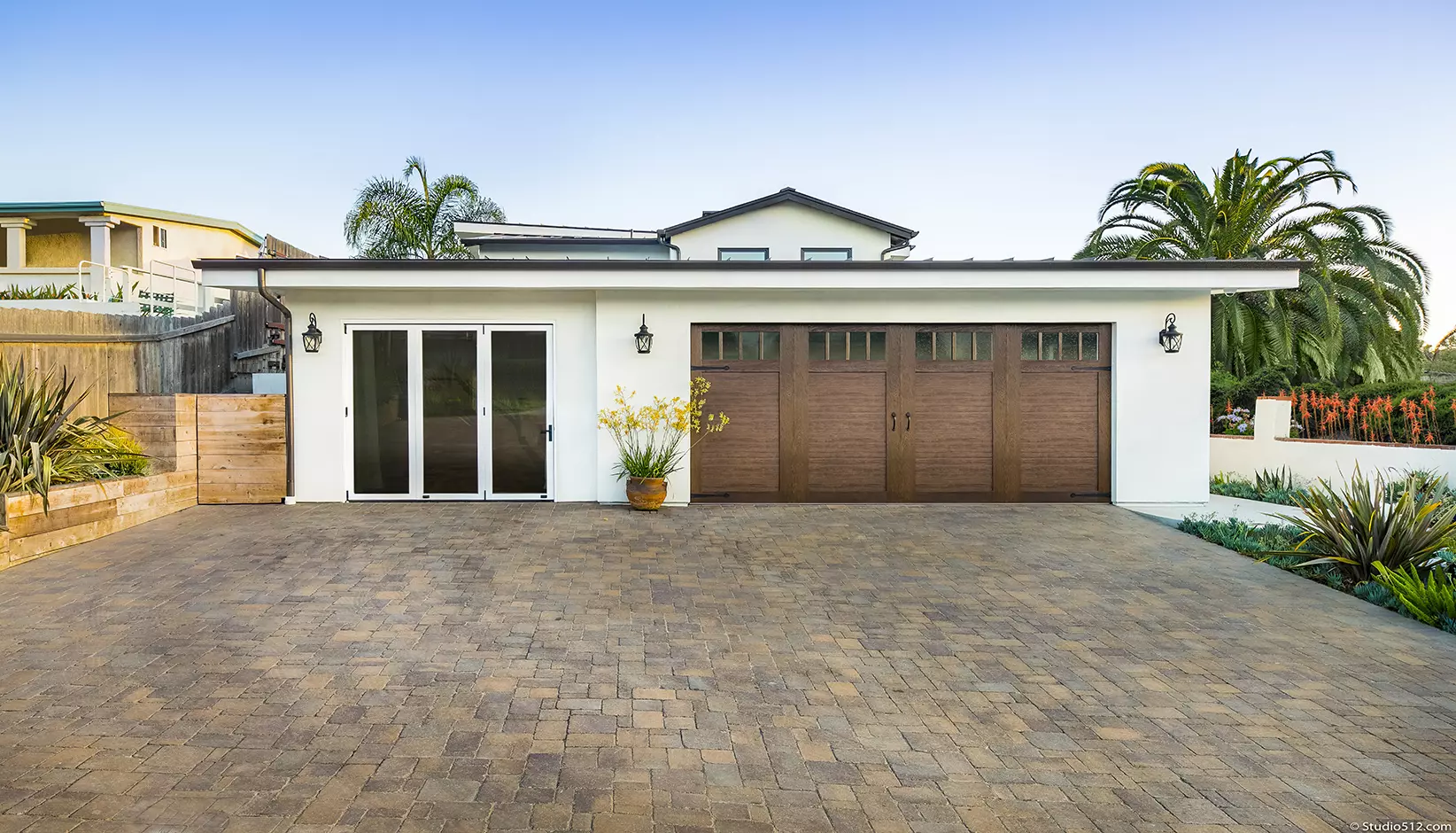

Canyon Ridge 4-Layer Garage Door
Canyon Ridge 4-Layer

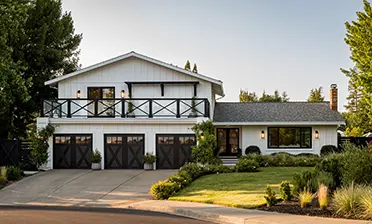

Black Canyon Ridge 4-Layer doors
Canyon Ridge 4-Layer Iowa-thumb
Canyon Ridge Ultra-Grain Slate
Canyon Ridge 4-Layer Closeup
Canyon Ridge 4-Layer-thumb
Canyon Ridge 4-Layer Slate-thumb
Canyon Ridge 4-Layer Garage Door-thumb
Overview

Built for Long-Lasting Curb Appeal

Strong 4-Layer Construction

The Canyon Ridge® Carriage House (4-Layer) door is made with a steel base, Intellicore® polyurethane insulation, another steel layer, and a composite overlay—so you get durability, energy efficiency, and lasting good looks.

Authentic Wood Appearance

The faux wood composite overlay is molded from real wood, capturing all the charm and natural texture of classic carriage house doors without the maintenance headaches.

Customizable Design Options

Choose from 15 carriage house styles, optional windows, and eye-catching decorative hardware to make your door your own. Pick from 8 standard finishes or go bold with more than 1,500 custom ColorBlast® paint colors.

Energy-Saving Insulation

With a 2" thick Intellicore® polyurethane core (R-value 18.4), your garage stays more comfortable all year.

Weather-Ready Protection

WindCode® door reinforcement is available for extra peace of mind in high-wind areas.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Construction

Performance You Can Rely On

Each Canyon Ridge® Carriage House (4-Layer) garage door is designed for strength, insulation, and low maintenance. The foundation is a heavy-duty steel base that offers solid support and long-lasting durability. On top of that, a second layer of steel adds extra strength, while Clopay’s exclusive Intellicore® polyurethane insulation—2" thick—is sandwiched in between. This insulation delivers excellent thermal efficiency with an R-value of 18.4, helping keep your garage comfortable and quiet.

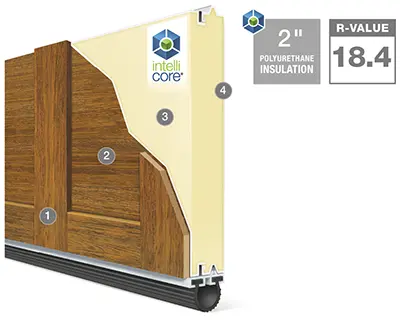

Cutaway Canyon Ridge 4 Layer
  1. Composite Overlay
  2. Steel with Ultra-Grain® Paint Finish (Shown) or Solid Color Steel
  3. 2" Intellicore® Polyurethane Insulation
  4. Steel

The exterior features a moisture-resistant composite overlay, molded from real wood pieces to mimic the look and grain of genuine wood. Unlike real wood, the composite won’t warp, crack, or rot, even in tough weather conditions.

The hot-dipped galvanized steel is finished with a durable, baked-on primer and topcoat to guard against rust and fading. For safety, every door includes pinch-resistant sections and strong safety brackets as standard features.
Design Options

The Canyon Ridge® Carriage House (4-Layer) collection offers a range of door designs. You can choose from three series, each with its own distinctive look. Whether you prefer a traditional carriage house design, a more modern farmhouse vibe or a mix of both, there’s a configuration to complement your home’s character.

Each design series features unique window arrangements—from classic rectangular panes to arched or full-view options—so you can let in sunlight or keep things private. The option for solid or windowed tops let you create a door that feels custom-made. With so many combinations, it’s easy to find a look that complements everything from historic homes to contemporary builds, all with the enduring appeal of carriage house style.

Door Designs Door Designs

Series 1

Design 11
Design 11
Design 12
Design 12
Design 13
Design 13

Series 2

Design 21
Design 21
Design 22
Design 22
Design 23
Design 23

Series 3

Design 31
Design 31
Design 32
Design 32
Design 33
Design 33
Design 34
Design 34
Design 35
Design 35
Design 36
Design 36
Design 37
Design 37
Design 38
Design 38
Top Sections Top Sections

Solid Top Sections

top11
TOP11
top12
TOP12
top13
TOP13
ARCH1
ARCH1

WINDOW DESIGNS

REC11
REC11
REC13
REC13
REC14
REC14
SQ23
SQ23
SQ24
SQ24
ARCH1
ARCH1
ARCH3
ARCH3
ARCH4
ARCH4
ARCH13
ARCH13
ARCH14
ARCH14

Double Top Sections

ARC1A - SOLID (Double Door)
ARC1A-Solid-Double Door
ARC1A - WINDOW (Double Door)
ARC1A-Windows-Double Door
ARC13A - WINDOWS (DOUBLE DOOR)
ARC13A-Windows-Double Door
ARC3A - WINDOWS (Double Door)
ARC3A-Windows-Double Door
ARC4A - WINDOWS (Double Door)
ARC4A-Windows-Double Door
ARC14A - WINDOWS (DOUBLE DOOR)
ARC14A-Windows-Double Door

With the Canyon Ridge® Carriage House (4-Layer) door, you can tailor the top section to match your style and your home’s architecture. If you prefer a classic, understated look, choose from several solid top designs—either straight or arched—to keep things simple and refined. For those who want to let in more light or add a decorative touch, there’s a wide selection of window options: choose from rectangular, square, or arched windows in various grid patterns. Double doors get even more design flexibility, with special double-arched and multi-window configurations that make a big visual statement.

Specialty Glass Options Specialty Glass Options
Clear Glass
Clear
Seeded
Seeded
Rain
Rain
Frosted
Frosted
Obscure
Obscure

Personalize your garage door even further with a variety of specialty glass choices. Choose clear glass for an open look that brightens your garage or opt for seeded glass if you like a textured style with a touch of vintage charm. Rain and frosted glass both soften the view and add privacy, while obscure glass provides even more privacy without sacrificing daylight.

For homes in areas that require extra protection, impact-rated windows are available in clear glass only, meeting strict safety standards.

Note: Impact rated windows available only in clear.

Material Options Material Options

Steel Base Door Materials

Ultra-Grain Finish Clear Cypress or Solid Color Steel
Ultra-Grain® Finish Clear Cypress or Solid Color Steel

Composite Overlay Materials

Composite Mahogany
Mahogany
Composite Clear Cypress
Clear Cypress

The Canyon Ridge® Carriage House (4-Layer) door has a steel base and is finished in either Ultra-Grain® Clear Cypress for a rich, wood-look texture, or in a solid color for a clean, modern appearance. The composite overlays—available in Mahogany or Clear Cypress—are molded from real wood, capturing the intricate grain and authentic feel of high-end timber without the maintenance hassles.

These material choices let you create a door that suits your home’s style, whether you’re after the warm, rustic character of Mahogany or the light, contemporary look of Clear Cypress. The result is a garage door that not only stands up to the elements but also delivers remarkable curb appeal and timeless charm.

Colors Colors

Espresso finish Espresso Finish
Natural finish Natural Finish
Dark Dark Finish
Ultra-Grain Cypress Medium Ultra-Grain Cypress Medium Finish
Ultra-Grain Cypress Walnut Ultra-Grain Cypress Walnut Finish
Slate Ultra-Grain Cypress Slate Finish
Black Black Finish*
White White Finish*
Primed Primed (No Finish)
Bronze Bronze*
Charcoal Charcoal*

You can personalize your Canyon Ridge® Carriage House (4-Layer) door with a wide range of color and finish options to match your home’s unique style. Classic Ultra-Grain® finishes like Medium, Walnut, and Slate capture the warmth and depth of natural wood, perfect for adding elegance and character. For a more contemporary or bold look, select from Black, White, Bronze, or Charcoal finishes—these are exclusive to the Mahogany overlay for an upscale, dramatic effect.

If you want to create something truly unique, try the two-tone option: choose one color for the steel base and another for the composite overlay, adding extra dimension and personality to your door. Prefer a blank canvas? Opt for the primed finish, ready for your custom paint. And with the ColorBlast® program, you get access to over 1,500 custom colors, ensuring your garage door will be a perfect match.

Request Color Samples

*Available on select models.
Black, white, bronze and charcoal only available in Mahogany.
Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).
Custom color available through ColorBlast® program.

Hardware Hardware

Handles

Hardware
Spade Lift Handles
(included)
Hardware
Spear Lift Handles
Hardware
Colonial Lift Handles
Hardware
Decorative Lift Handles
Hardware
Ring Door Knocker
Hardware
Escutcheon Plates
Hardware
Twisted "L" Handles

Plates

Spade Step Plate
Spade Step Plate
Spear Step Plate
Spear Step Plate
Colonial Step Plate
Colonial Step Plate

Hinges

Spade Strap Hinge
Spade Strap Hinge
Spear Strap Hinge
Spear Strap Hinge
Colonial Strap Hinge
Colonial Strap Hinge

Complete the look of your Canyon Ridge® Carriage House (4-Layer) door with a range of stylish hardware options that blend authentic carriage house character with everyday convenience. Every door comes standard with spade lift handles, but you can upgrade to spear or colonial Lift Handles if you want a different look. For extra flair, add decorative handles, ring door knockers, or escutcheon plates—all designed to give your door a custom, handcrafted feel.

Step plates and strap hinges are available in spade, spear, or colonial styles, so you can match your hardware to your handle choice and create a cohesive look. Made from durable materials and finished to resist the elements, the hardware adds practical function and lasting appeal, making your garage door easy to use and impossible to ignore.

Resources
Canyon Ridge

Canyon Ridge Brochure

Canyon Ridge® garage doors give you the best of both worlds — the luxurious look of authentic wood and the practical functionality of steel and composite materials
Explore Brochure
Idea Book

Products Available Through Independent Dealers

A garage door can represent as much as 30% of your home’s front façade, which makes choosing the right design especially important — and Clopay has the widest selection available.
View Brochure
Home Depot Brochure

Products Available at Home Depot

A garage door can represent as much as 30% of your home’s front façade, which makes choosing the right design especially important – and Clopay has the widest selection available
View Brochure
Installation Manual-Insulated Garage Doors

Installation Manual for Residential Sectional Insulated Steel Doors

Installation instructions for our residential insulated steel garage doors
View Document
Canyon Ridge Care and Maintenance

Canyon Ridge Care and Maintenance

Canyon Ridge Care and Maintenance
View Document
Installation Warranty

Installation Warranty

All of our Elite, Authorized, Master Authorized and Advanced Authorized Dealers offer a minimum 1 Year installation warranty on Clopay replacement doors.
View Document
FAQ
  • What is the difference between a Canyon Ridge 4-Layer door and a Canyon Ridge Elements door?
    The biggest difference is that the 4-Layer door comes in stained Ultra-Grain finishes as well as solid paint colors. It has a polyurethane insulated steel base door topped with woodgrain textured composite overlays. The R-value is 18.4.  The Elements door has textured overlays on a polystyrene insulated steel base door and can only be painted, not stained. It has a 6.5 R-Value and is slightly lower cost than the 4-Layer model.
  • What do you mean by overlays?
    Overlays are the composite material that is adhered to the steel base door to create the design.
  • How do I touch up a scratch on my Canyon Ridge 4-Layer door?

    What our extensive video on how to touch up an Ultra-Grain garage door.

    Watch Now
  • What material is a Canyon Ridge 4-Layer door made of?
    The 4-Layer Canyon Ridge garage door has a visible steel base with a painted woodgrain finish topped with stained composite overlays. The overlays come in Clear Cypress for Ultra-Grain® stained wood-look finishes or Mahogany for solid paint colors.
  • What is Ultra-Grain?
    The Ultra-Grain® finish from Clopay simulates the look of wood but without the need for staining and the ongoing maintenance that real wood requires. This faux-wood paint finish provides a sophisticated look and real durability.
  • Which architectural styles best complement the Canyon Ridge 4-Layer door?

    The Canyon Ridge® Carriage House (4-Layer) garage door is a flexible choice for just about any home. Its classic carriage house design, customizable overlays, and authentic wood-look finish pairs perfectly with everything from stately Victorian and Tudor houses to Craftsman bungalows and rustic farmhouses. The door’s warmth and texture also make it a great match for Mediterranean, ranch, and even coastal homes, blending in while adding standout curb appeal. Whether your house is traditional or has a more contemporary twist, the Canyon Ridge Carriage House (4-Layer) brings timeless character and beauty that elevates any exterior.
