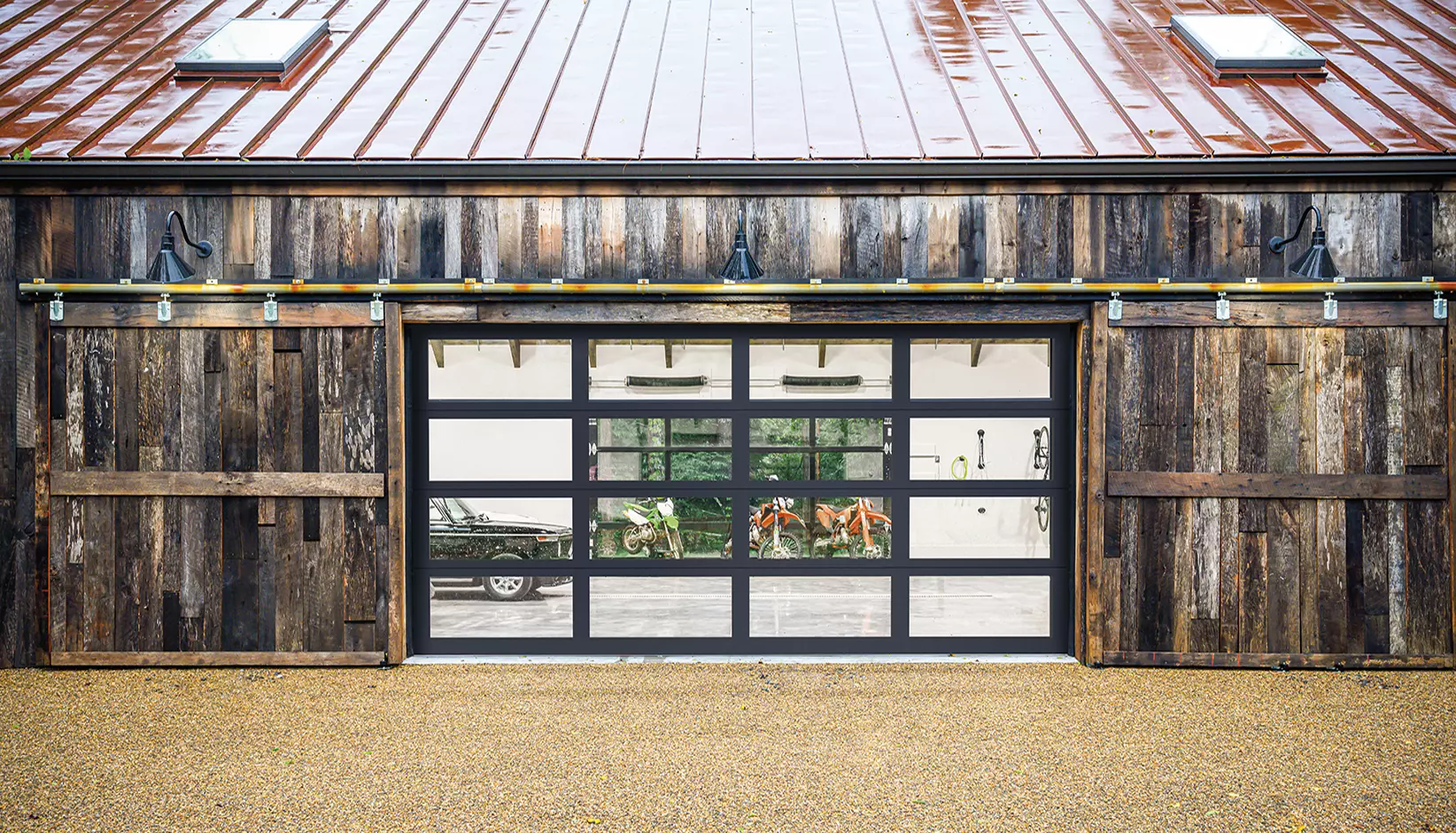

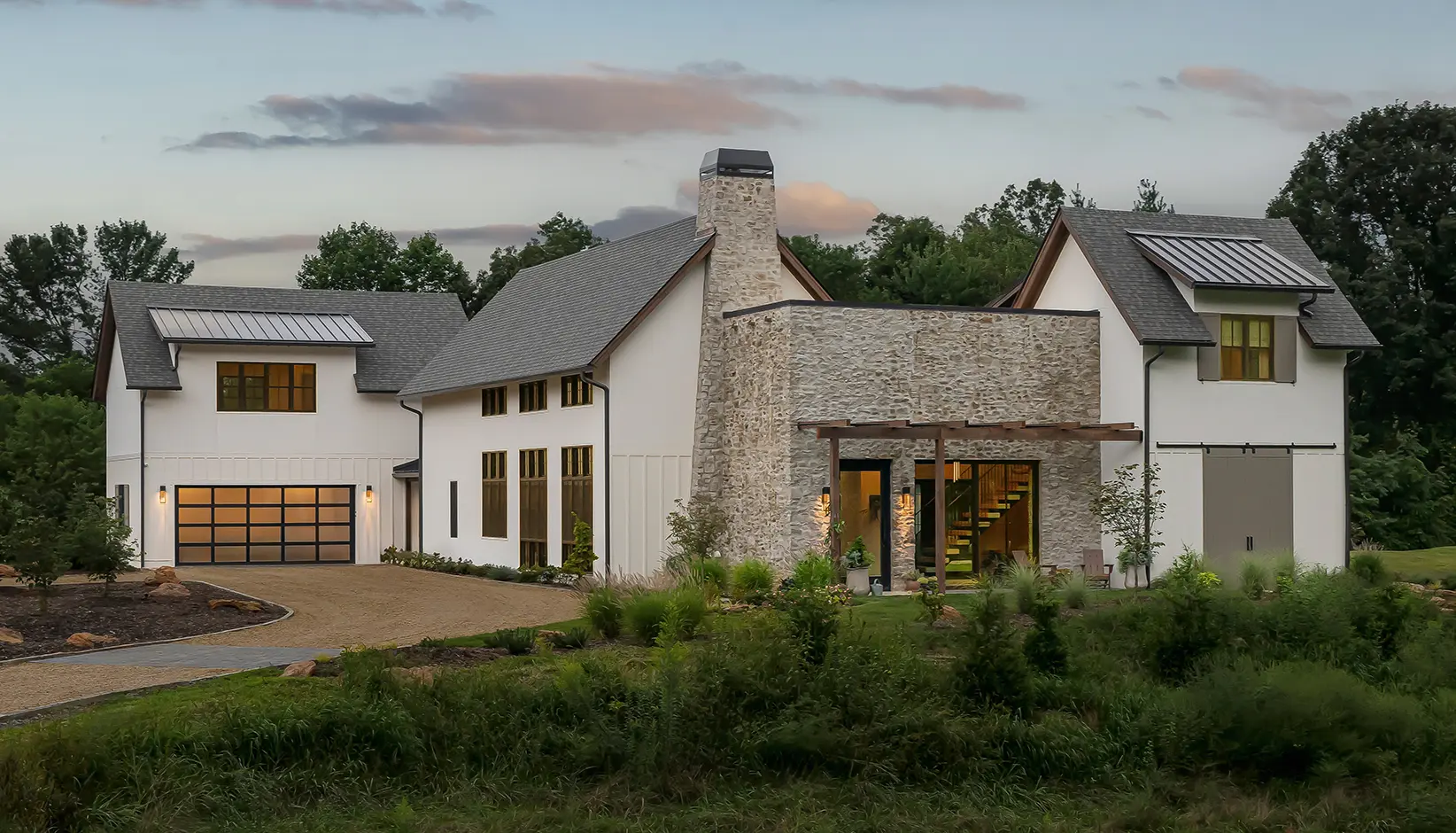

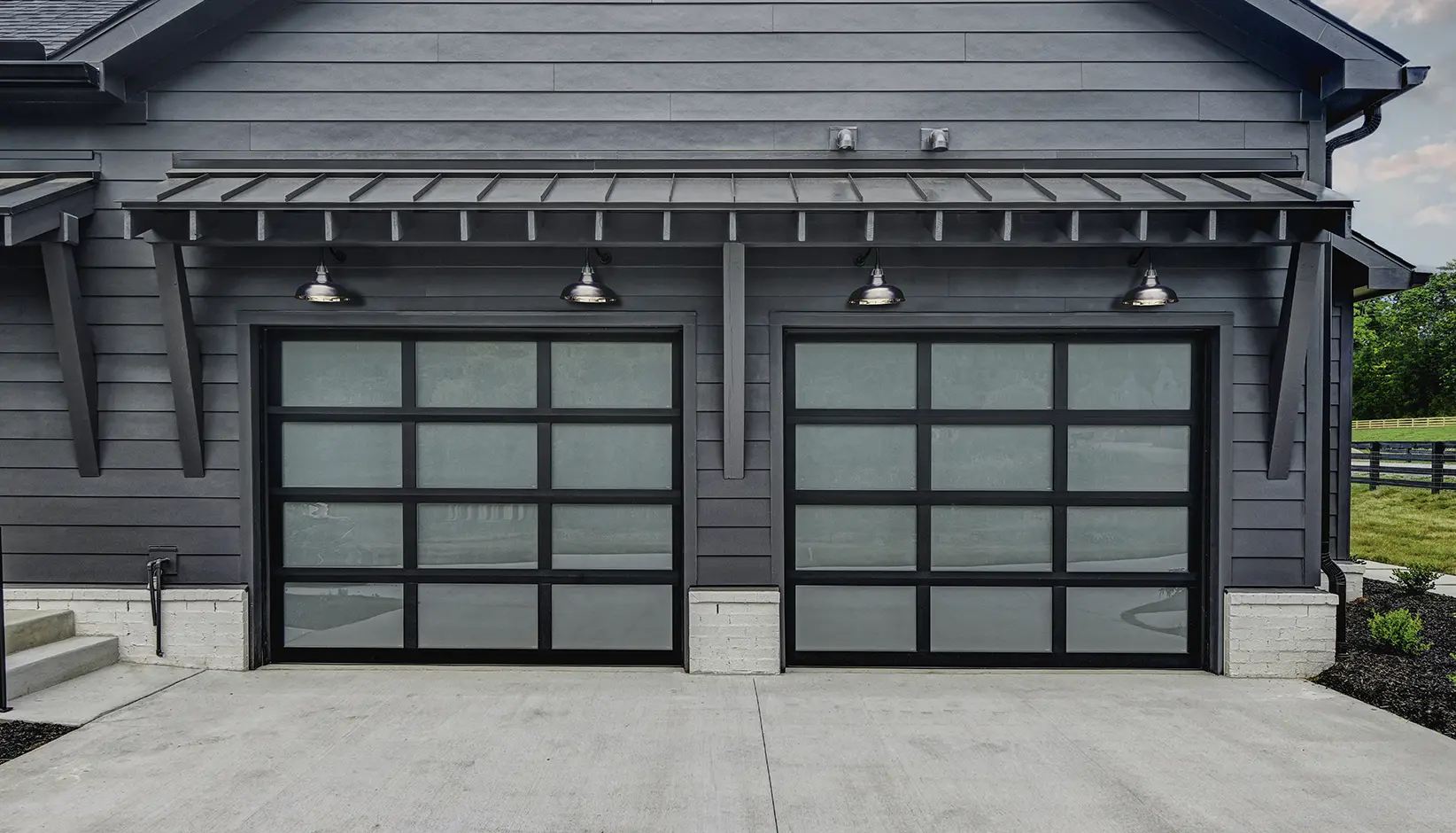

Avante®

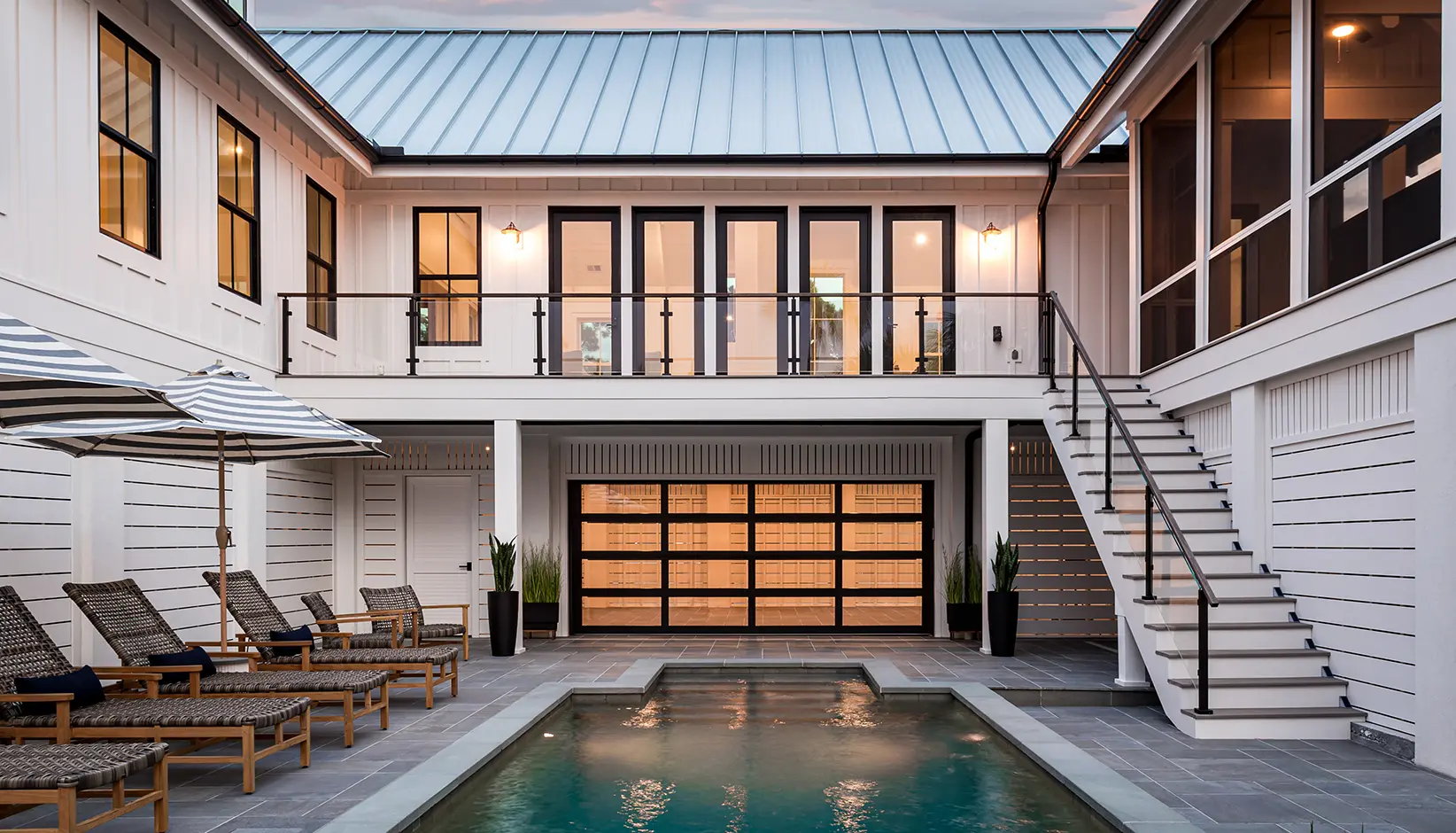

The Avante® is more than just an upgrade; it’s a stunning garage door designed to turn heads and leave a lasting impression. With its clean, minimalist lines and sleek aluminum frame, the Avante® creates a dramatic architectural presence for any space—garage, loft, solarium, or even as a creative indoor partition. You can customize glass and aluminum panels to control privacy, natural light, and achieve a look that reflects your style.

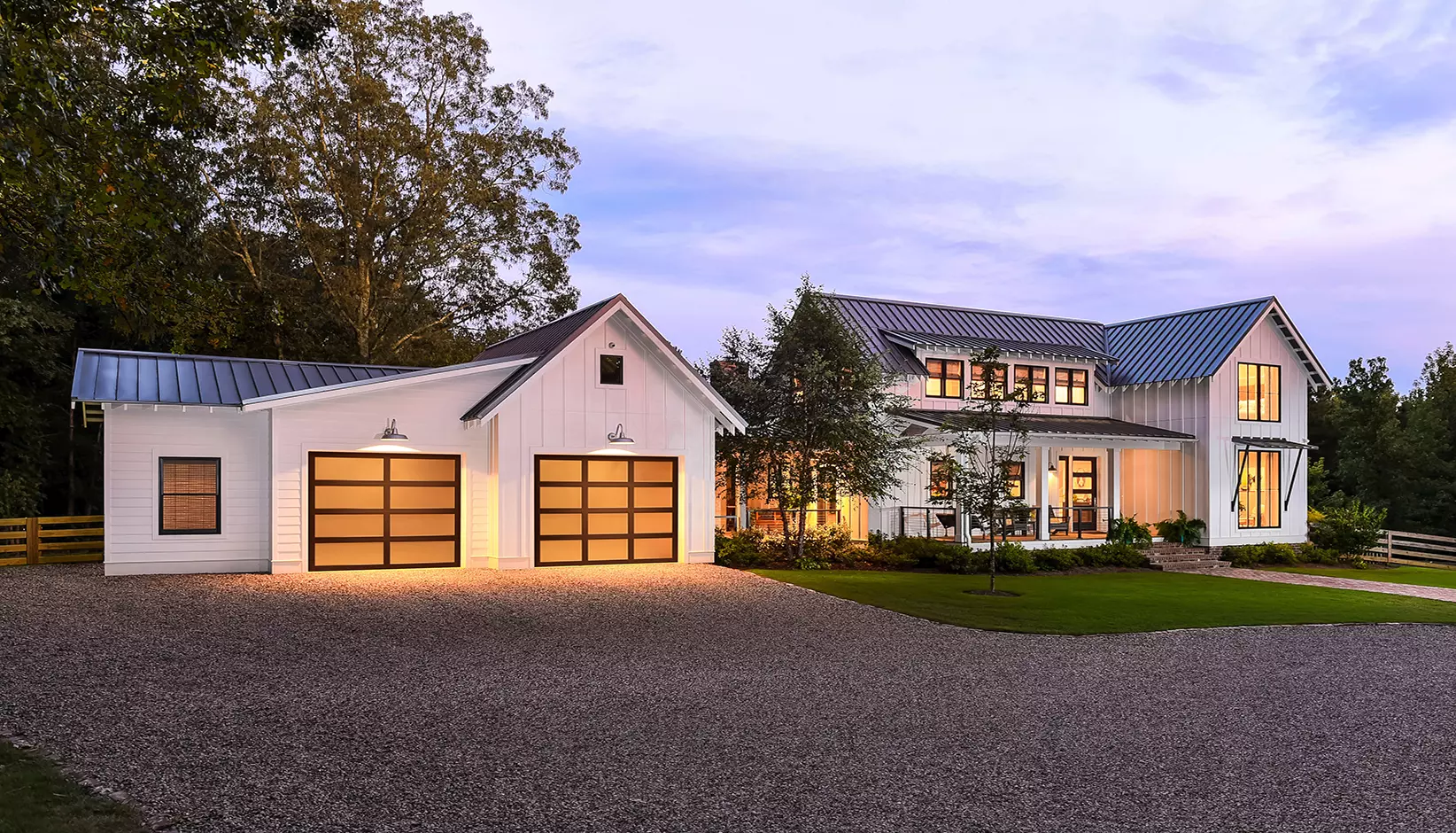

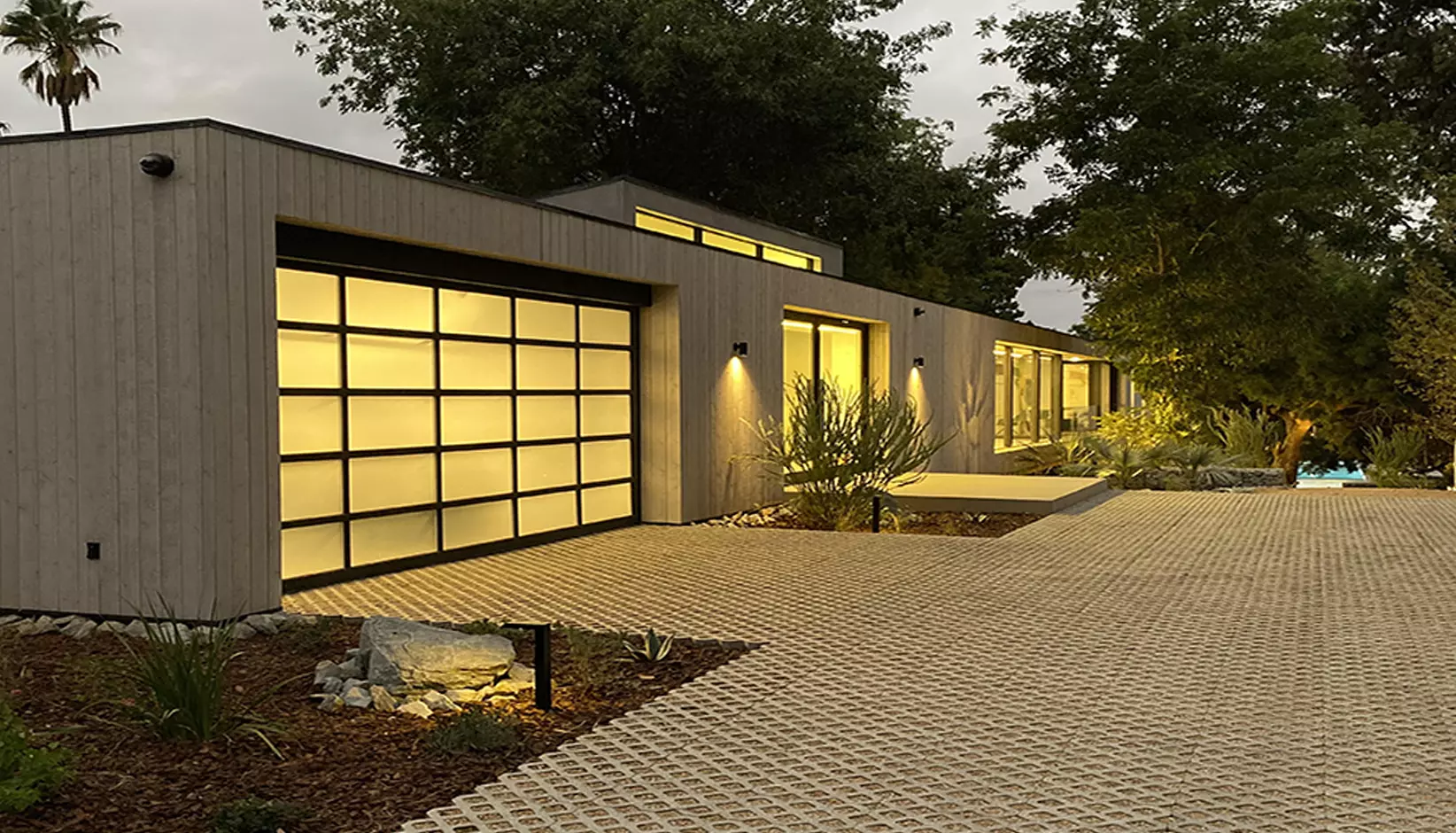

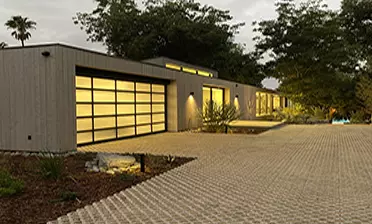

Let daylight stream in with clear or frosted glass or select tinted and mirrored panels for added privacy. At night, the Avante® softly illuminates your space, bringing a modern edge to your home. Built with commercial-grade aluminum and Intellicore® insulation, it’s strong, energy efficient, quiet, and easy to maintain.

Overview

Modern Style, Lasting Performance

Built Tough

The Avante® features a strong, 2-1/8" commercial-grade aluminum frame that stands up to daily use and weather, all while staying low-maintenance.

Your Look, Your Way

Mix and match from a variety of finishes — choose anodized, painted, or powder-coated frames, plus over 1,500 custom Color Blast® shades. Fill your panels with tempered glass, acrylic, Polygal, or solid aluminum to match your style and privacy needs.

Natural Light & Insulation

Let the sun in with clear panels or opt for frosted or tinted glass for privacy. Insulated glass panels are available for extra comfort and energy efficiency.

Ready for A Storm

WindCode® door reinforcement is available for homes in high wind areas.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill
  • Meets ASHRAE® 90.1 Title 24 and IECC® (International Energy Conservation Code) 2021 Section C406.9 Air Infiltration requirements.>
Construction

Beauty and Strength Meets Modern Engineering

The Avante® is built with a virtually maintenance-free, commercial-grade aluminum frame that stands up to daily life and weather. Its 2-1/8" thick construction includes Intellicore® polyurethane-insulated rails and stiles (on Model AXU), giving you added strength, energy efficiency, and a quieter garage with an R-value of 3.8 when paired with insulated glass.

Every section of the door features tongue-and-groove joints and a section joint seal to help keep out air and water, so your garage stays more comfortable all year. For double-car models and wider doors, an integral reinforcing fin increases strength and durability.

Choose from a wide range of tempered glass, acrylic, Polygal, or solid aluminum panels to match your light and privacy needs. The rust-resistant frame and panels are easy to clean and built to last, with safety brackets included.

Avante Construction
Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting
Avante Construction
Model AXU made of 2-1/8" durable commercial grade aluminum with Intellicore® polyurethane insulation with an R-value of 3.8 (with clear insulated glass)
Section Joint
Integral section joint seal for further reduction of air and water infiltration
Avante Construction
Smooth flat frame edge design for a more contemporary look
Section Joint
Reinforcing fin included on doors wider than 14’. Standard doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WindCode® doors may vary.

Additional Features

  • Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
  • Integral section joint seal helps keep out air and water.
  • Built-in reinforcing fin provides increased strength and longevity. Included on doors wider than 14’. Standard doors 12’ and under do not use a reinforcing fin. Usage on doors 12’2” to 14’ wide depends upon glass weight. WindCode® doors may vary.
  • A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
  • All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Design Options

The Avante® lets you fine-tune your garage door’s look and privacy with a wide selection of specialty glass and panel options. Choose clear glass for maximum daylight or go with tinted options like gray, bronze, or midnight gray for a softer, more private effect. Mirrored and obscure glass add another layer of privacy.

Impact-rated glass is available for select models which is perfect for areas prone to storms. Frosted and white laminate glass offer privacy without sacrificing natural light, while acrylic and Polygal panels give you lightweight, durable alternatives with a contemporary twist.

All glass (except for some specialty types) is tempered for safety. You can mix and match glass, acrylic, and aluminum panels to create the custom look you want. Just note: some specialty glass isn’t available with insulation, and acrylic panels need a little extra care when cleaning. But no matter what you choose, your door will be both functional and beautiful.

Door Designs Door Designs

Clear Glass
Clear Glass
Gray Tinted
Gray Tinted Glass
Bronze Tinted Glass
Bronze Tinted Glass
Mirrored Glass
Mirrored Glass
Obscure Glass
Obscure Glass

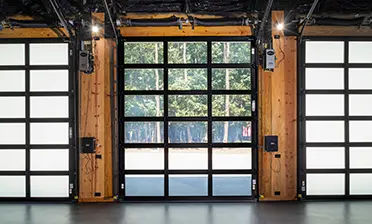

White Laminate
White Laminate Glass
Frosted Glass
Frosted (Satin Etched) Glass Or Frosted Acrylic
Clear Acrylic
Clear Acrylic
Gray Acrylic
Gray Acrylic
White Acrylic
White Acrylic
Clear Polygal
Clear Polygal
Bronze Polygal
Bronze Polygal
Clear Anodized Aluminum
Clear Anodized (Aluminum Panel)

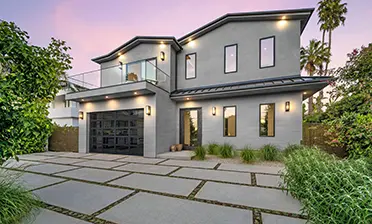

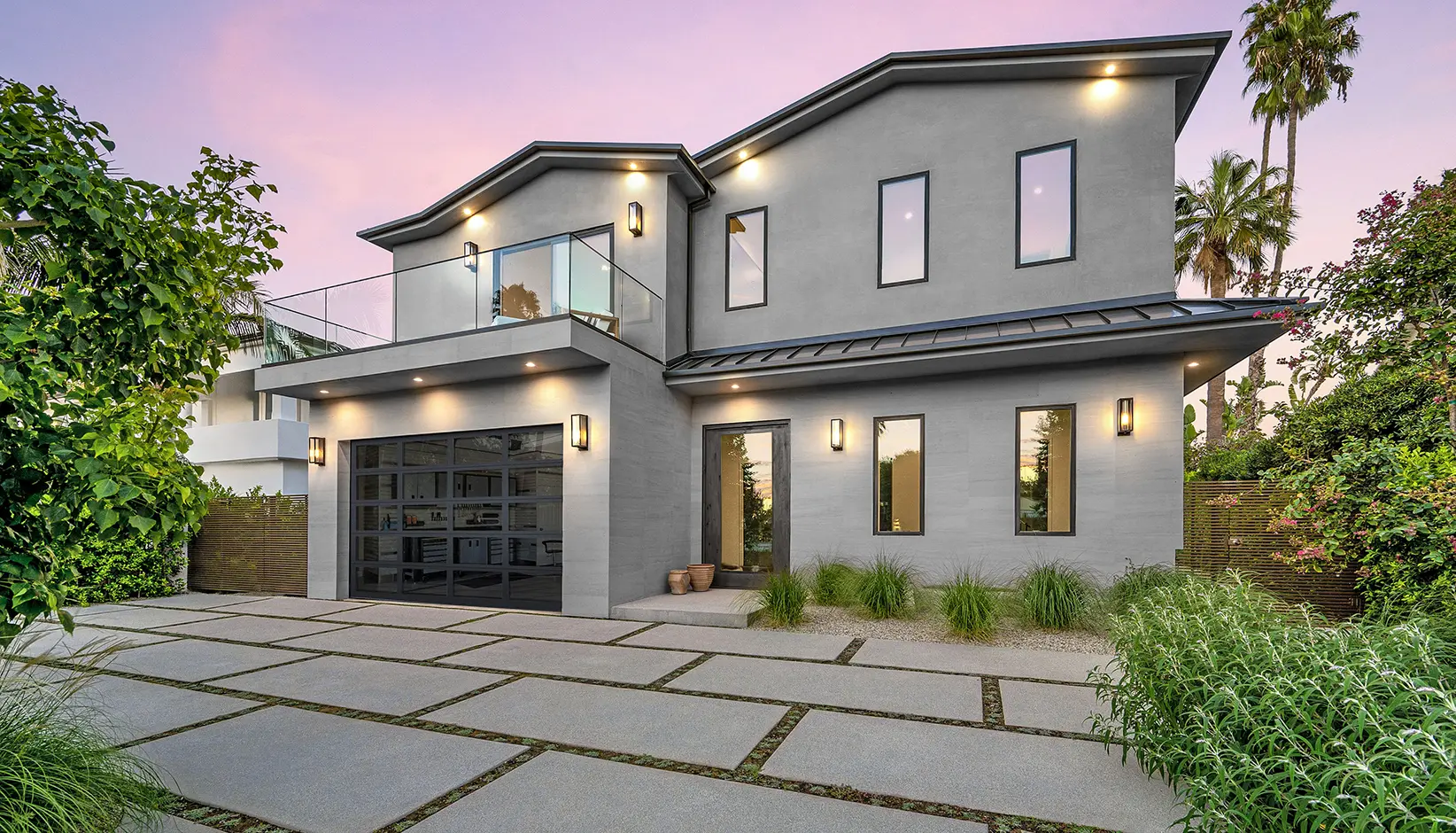

Midnight Gray Glass
Midnight Gray Glass

Note: *Satin etched is used in the AX/AXU models.

Colors Colors

Colors

Clear Anodized Clear Aluminum (Anodized)
Standard White Standard White
Bronze Painted Bronze (Painted)
Chocolate Painted Chocolate (Painted)
Bronze Anodized Bronze (Anodized)
Black Black (Anodized)
Dark Bronze Dark Bronze (Anodized)

The Avante® comes in a variety of sleek finishes to match any style. Choose from Clear Aluminum for a bright, modern look, or go with Standard White for a crisp, clean finish. If you want something richer, Bronze and Chocolate painted options add warmth and depth. For those who love darker tones, Black and Dark Bronze anodized finishes create a sophisticated contrast.

If you’re after something unique, Clopay’s custom Color Blast® program lets you pick from over 1,500 colors, so you can match your home’s style down to the last detail. While anodized finishes offer a beautiful metallic look, keep in mind there may be some color variation — for a more uniform bronze, the painted version is your best bet.

Request Color Samples

Due to the anodizing process, color variation may occur. The use of “Bronze (Painted)” is recommended for a more consistent bronze finish color. Custom colors available.

Hardware Hardware

Handles

Aluminum Grip
Optional Aluminum Grip Handle

The Avante® keeps hardware simple and stylish. Each door comes with the option to add a sleek aluminum grip handle, designed for easy, comfortable use every time you open or close your garage. The handle’s clean lines and sturdy construction blend well with the modern aesthetic of the door itself.

Resources
Avante Brochure

Avante Brochure

Avante® garage doors are designed with architects, contractors and homeowners in mind. With a sleek aesthetic and section seal, these doors are the perfect choice to modernize any home. Not only can they transform garages, they can also be used as an indoor loft partition or as versatile solarium doors. Many glass options are available to control the degree of light transmission and privacy.
View Brochure
Idea Book

Products Available Through Independent Dealers

A garage door can represent as much as 30% of your home’s front façade, which makes choosing the right design especially important — and Clopay has the widest selection available.
View Brochure
Installation Manual AX/AXU

Installation Instructions for Avante AX/AXU

Installation Instructions for Avante AX/AXU
View Document
Avante Care & Maintenance

Avante Care and Maintenance Manual

Avante Care and Maintenance Manual
View Document
Installation Warranty

Installation Warranty

All of our Elite, Authorized, Master Authorized and Advanced Authorized Dealers offer a minimum 1 Year installation warranty on Clopay replacement doors.
View Document
FAQ
  • I live in a coastal area. Can I get impact glass for an Avante garage door?

    Yes. The Avante is available with impact rated glass. Contact your local Clopay dealer for details.

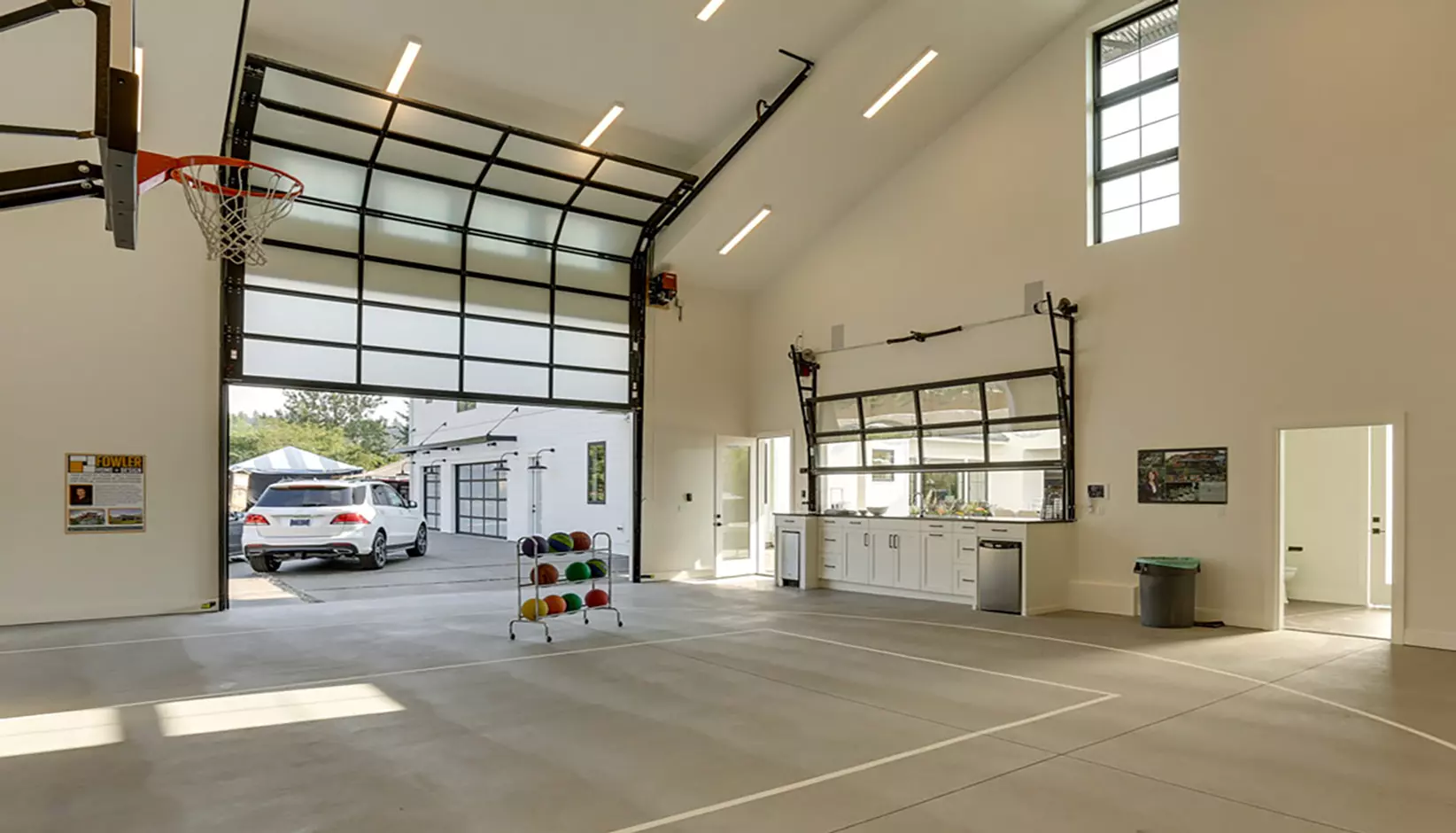

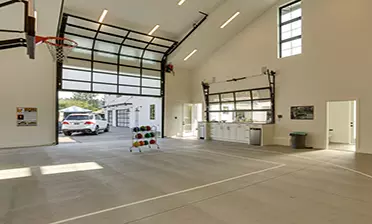

  • Can I get a custom size Avante to use as a roll-up bar window?

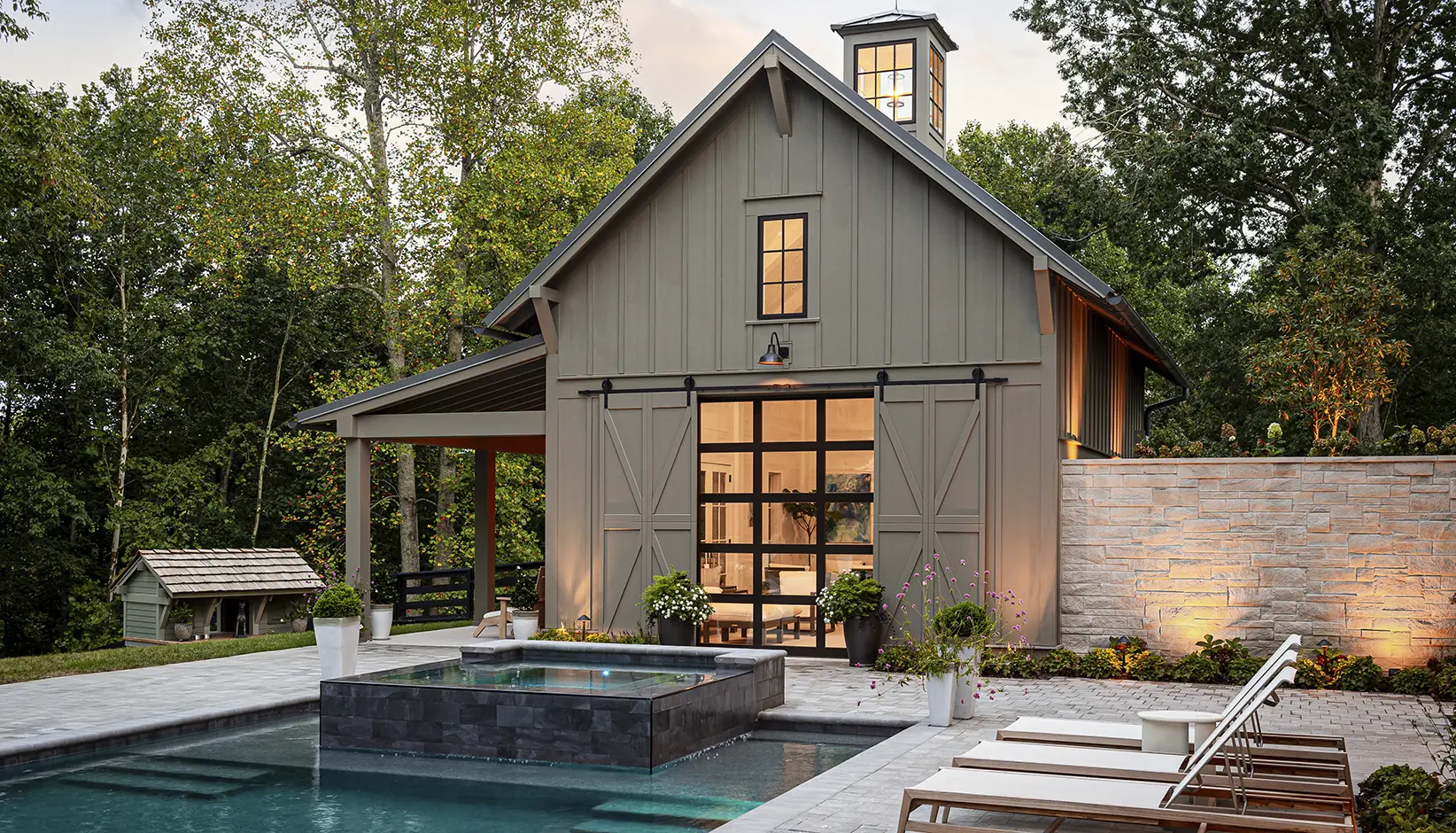

    Absolutely. The Avante is available in custom sizes, making it a perfect fit for unique spaces like home gyms, pool houses, and even party barns. You can see inspiring examples from other homeowners on our blog.

  • I want an Avante door, but I don’t want anyone to be able to see inside my garage. What glazing do you recommend?
    There are several glazing options that give you the benefit of natural light without compromising privacy. These include frosted, mirrored, opaque and laminate.
  • Is an aluminum garage door good for coastal areas?

    Aluminum is a low-maintenance, weather-resistant material that won’t rust or corrode, making it a good choice for coastal environments.

  • Which architectural styles best complement the Avante?

    The Avante® is a natural match for contemporary, modern, and mid-century homes, thanks to its clean lines, minimalist frame, and expansive glass panels that let in light and showcase futuristic architecture. It’s also a great choice for urban lofts, industrial-inspired spaces, and homes with mixed materials like wood, stone, or metal because the door’s aluminum and glass construction adds a touch of sleek contrast that pulls everything together. Even Craftsman or transitional homes can benefit from the Avante®’s flexibility; its customizable panels and color options can soften the ultra-modern look or highlight unique features. Whether your home is all about sharp angles, open spaces, or creative blends of old and new, the Avante® provides the right balance of style and substance to make your garage feel like it truly belongs.
