Architectural Series-Steel

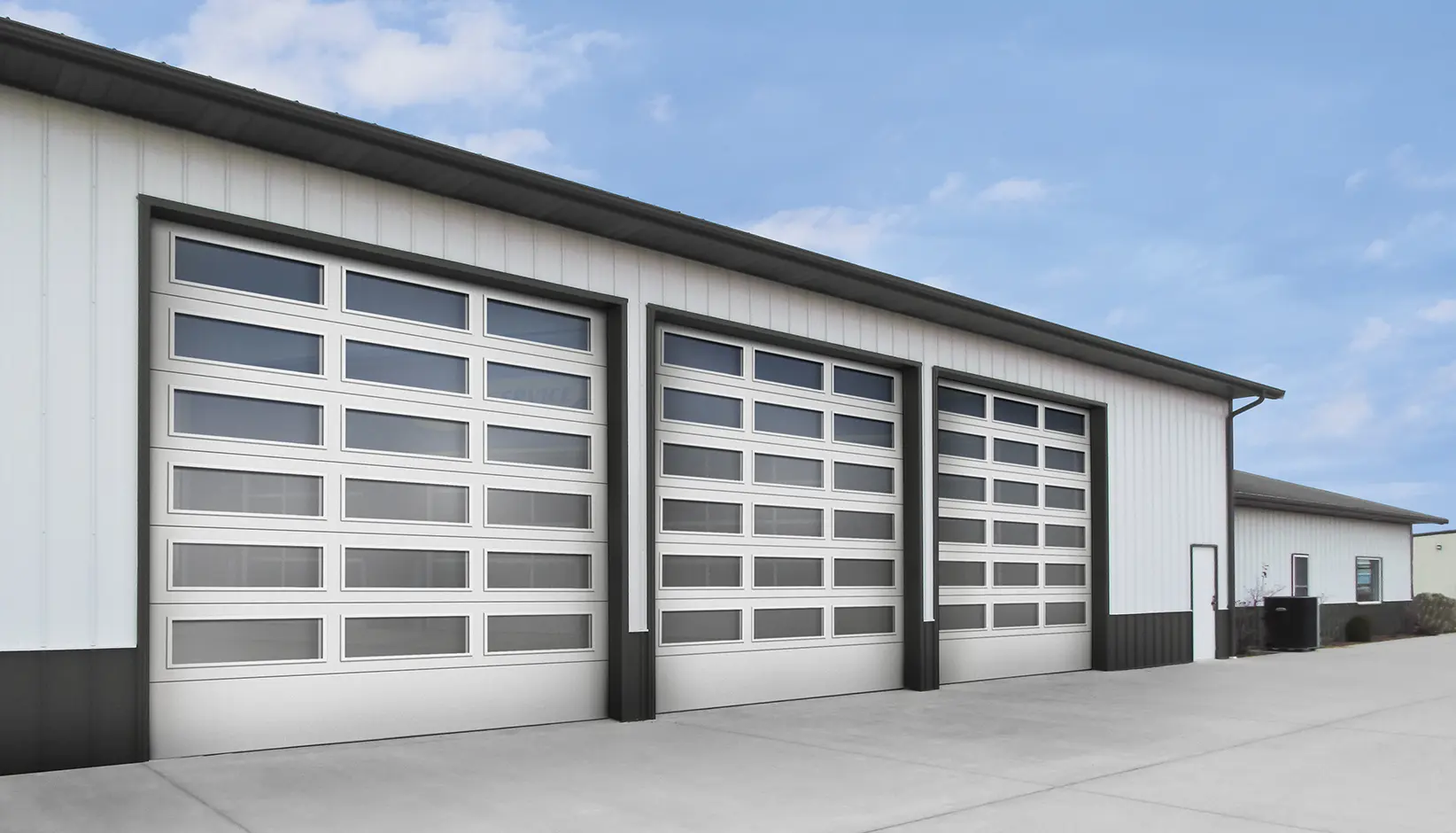

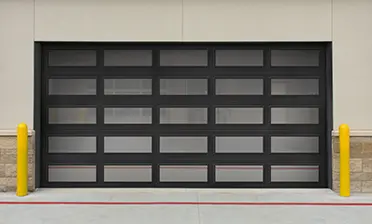

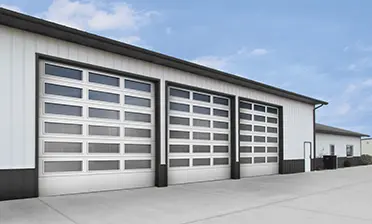

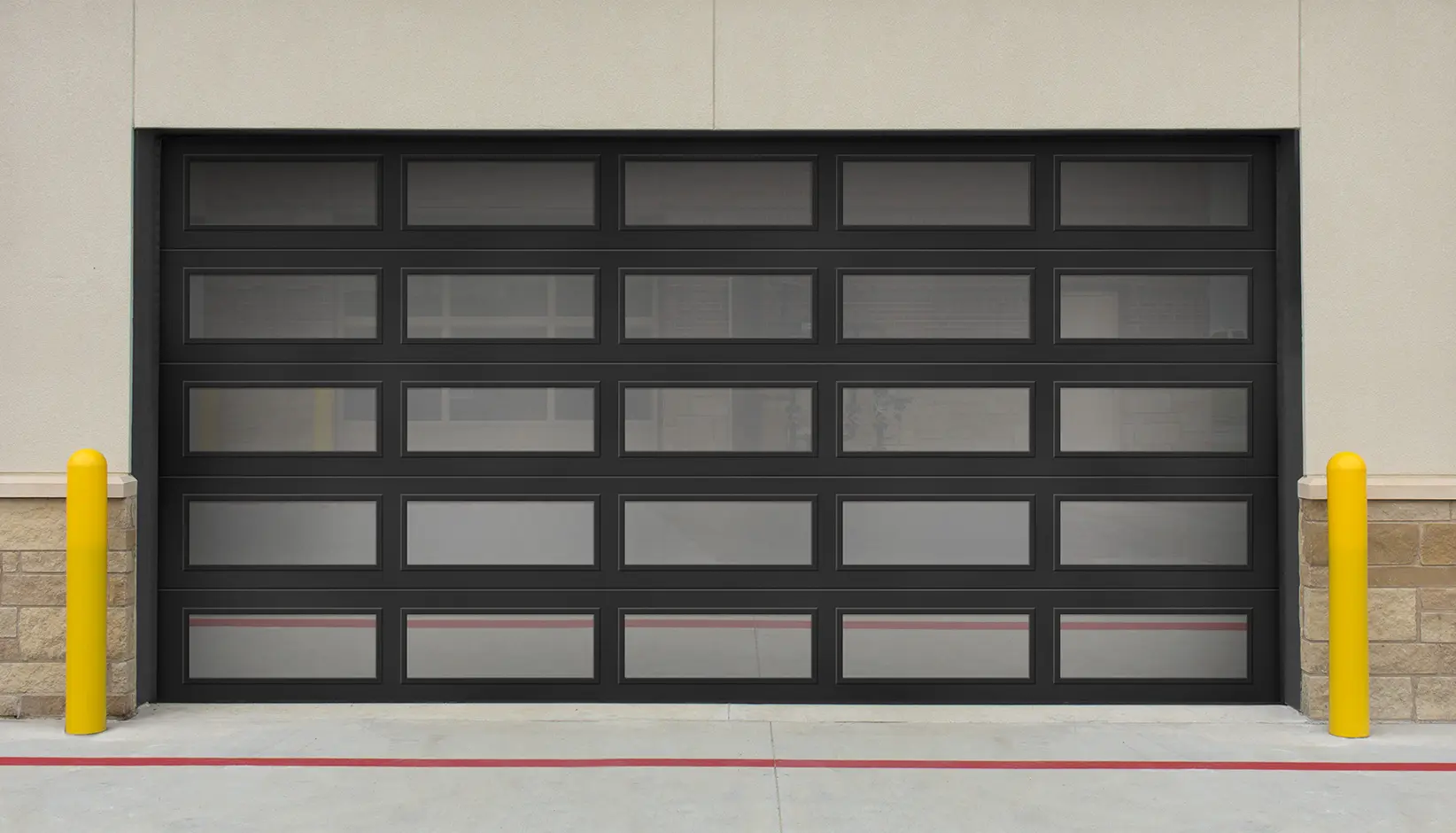

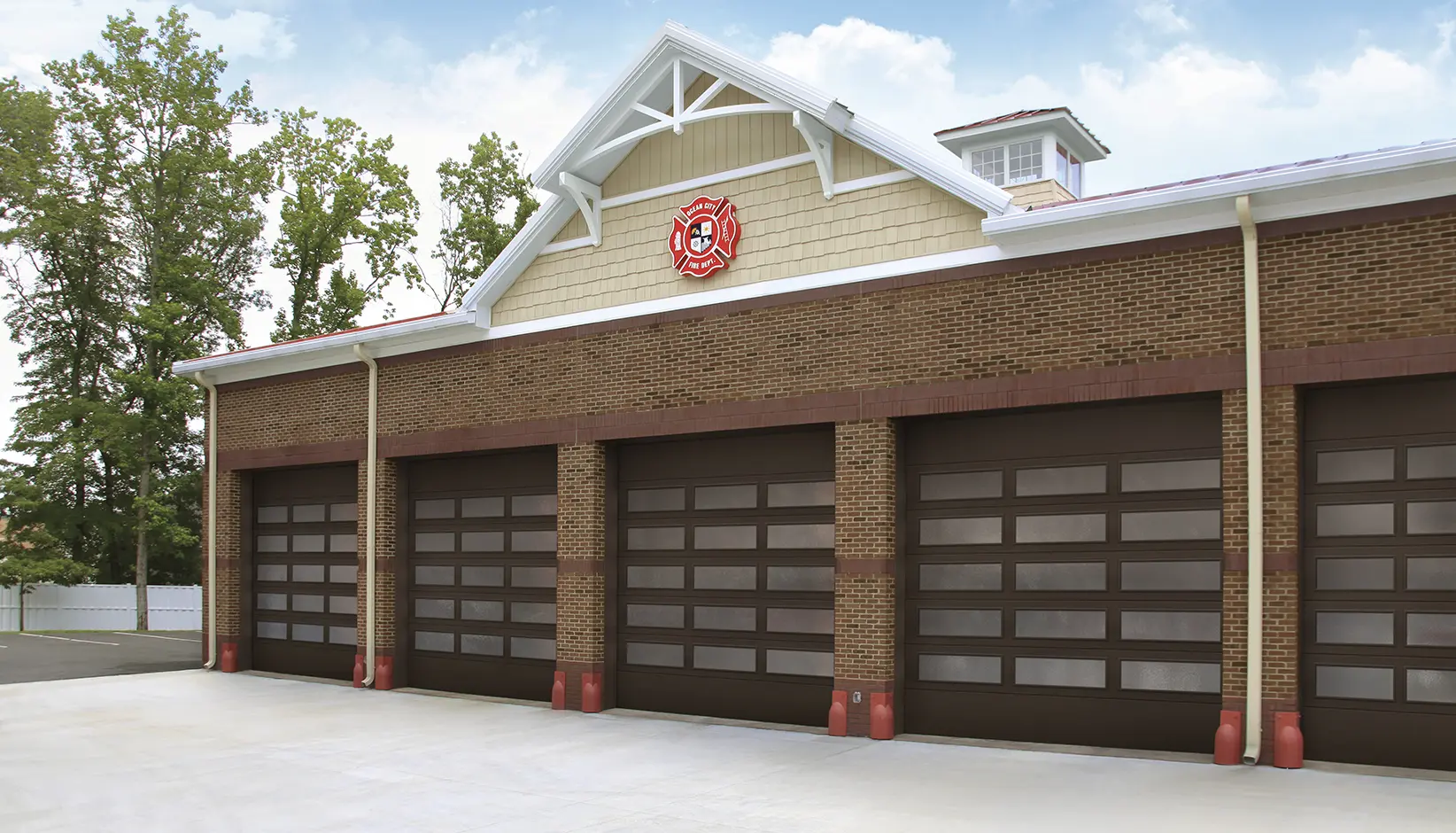

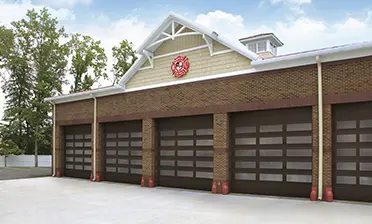

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships. These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

Models

Model	Section Thickness	Exterior Gauge	Section Design	Insulation	R-Value Solid	R-Value w/Glass	U-Factor Solid	U-Factor w/Glass	Max Width✭	Max Height✭
3729	2"	27	Minor Ribbed	Polyurethane*	18.4	8.0	0.19	0.39	20'2"	18'0"
3728	2"	27	Flush	Polyurethane*	18.4	8.0	0.19	0.39	20'2"	18'0"
3709	1-3/8"	27	Minor Ribbed	Polyurethane*	12.9	5.9	0.21	0.4	18'2"	16'0"
3708	1-3/8"	27	Flush	Polyurethane*	12.9	5.9	0.21	0.4	18'2"	16'0"
3209	2"	24	Minor Ribbed	Polystyrene	9.1	4.4	0.24	0.45	20'2"	18'0"
3208	2"	24	Flush	Polystyrene	9.1	4.4	0.24	0.45	20'2"	18'0"
3159	1-3/8"	27	Minor Ribbed	Polystyrene	6.5	3.4	0.3	0.44	18'2"	16'0"
3158	1-3/8"	27	Flush	Polystyrene	6.5	3.4	0.3	0.44	18'2"	16'0"

Notes:
R-Values Solid calculated per DASMA TDS-163 on a solid door
R-values with Glass calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
Tested door U-factor is in accordance with DASMA 105
*Clopay's proprietary polyurethane Intellicore insulation.
Doors are stucco embossed
All models contain thermal break
✭Maximum Width and Height values listed are Standard sizing.

Options

Glass Panel Options

19-1/2” x 16”	42” x 16”
Modern Slim Windows*

Color Options

Standard White

Almond

Desert Tan

Sandtone

Bronze

Mocha Brown

Gray

Charcoal

Chocolate

Black*

Trinar® White*

Lustra Black*±

Lustra Charcoal*±

Lustra Silver*±

Midnight Gray Glass

Request Color Samples
*Available on select models.
±Finish will have smooth texture.
Custom powder coat and Color Blast^® finishes available.

Premium finishing options include:

Custom Colors with ColorBlast® Garage Door Paint System
Bronze, dark bronze, black or custom color anodized finishing

Performance Options Available

Double-end hinge

3" track

High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem

Exhaust port can be cut into any type of solid sectional door. Available in select sizes.

WindCode^® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.

Upgrade your standard door with industrial-grade components.

25,000, 50,000 or 100,000 cycle springs available.

Speciality Options Available

Mullions
Carry-away, roll-away or swing-up mullions are available on select sizes.

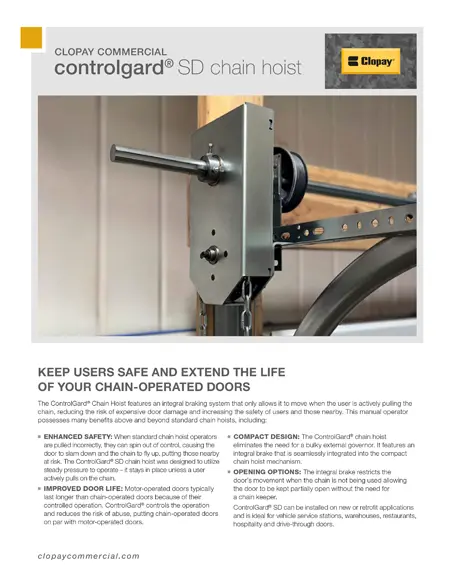

ControlGard® SD Chain Hoist
The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.

Construction

All of our Steel Insulated Door models come with the following:

Joint Design:	Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Limited Warranty:	10-year paint / 10-year delamination / 1 year material and workmanship / 1 year hardware

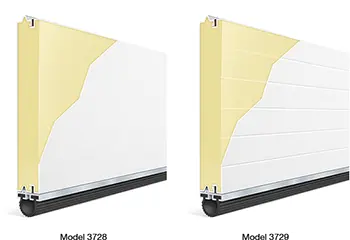

Model 3728/3729

Section Design/Emboss:	(3728) 2” thick stucco embossed steel with flush exterior skin pattern (3729) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge:	27 exterior; 27 interior

3728-3729

Model 3708/3709

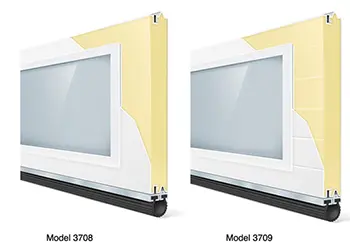

Section Design/Emboss:	(3708) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3709) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge:	27 exterior; 27 interior

3708-3709

MODEL 3208/3209

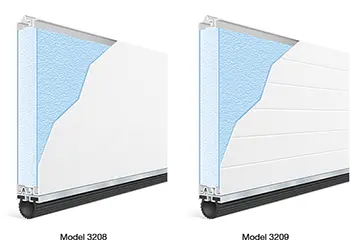

Section Design/Emboss:	(3208) 2” thick stucco embossed steel with flush exterior skin pattern (3209) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge:	24 exterior; 27 interior

3208-3209

Model 3158/3159

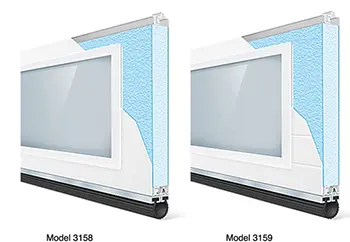

Section Design/Emboss:	(3158) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3159) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge:	27 exterior: 27 interior

3158-3159

Specs/Drawings

Model	BIM	Shop Drawing	Specs	Installation Manual	Warranty
All Models	—	—	—	—	—
Model 3158	—	Download PDF DXF DWG	Download RTF DOC PDF	PDF	PDF
Model 3159	—	PDF	DOC	PDF	PDF
Model 3208	—	Download DXF DWG	Download DOC RTF PDF	PDF	PDF
Model 3209	—	Download DWG DXF PDF	Download PDF RTF DOC	PDF	PDF
Model 3708	—	Download DXF PDF	Download DOC PDF RTF	PDF	PDF
Model 3709	—	Download DXF PDF DWG	Download RTF PDF DOC	PDF	PDF
Model 3728	—	Download DXF PDF	Download RTF PDF DOC	PDF	PDF
Model 3729	—	Download PDF DXF DWG	Download RTF PDF DOC	PDF	PDF
Model EX3159	—	—	Download RTF DOC PDF	—	—

Resources

Brochure 3158-3159

Steel insulated full view doors, models 3158 (stucco embossed, flush surface) and 3159 (stucco embossed, minor ribbed surface), are designed for use in commercial, retail, restaurant, and industrial facilities.

View Brochure

Brochure 3728-3729

Clopay Models 3728 (flush/no ribs) and 3729 (with minor ribs) are a smart choice for applications requiring visibility, natural light, strength, and energy efficiency.

View Brochure

Brochure 3208-3209

Models 3208 and 3209 provide visibility, natural light, and energy efficiency for commercial, retail, service, and industrial facilities.

View Brochure

Brochure 3708-3709

Models 3708 and 3709 offer visibility, natural light, energy efficiency, and durability with Intellicore® polyurethane technology.

View Brochure

ControlGard® SD Chain Hoist Brochure

Our ControlGard® SD Chain Hoist allows users to operate the door more safely.

View Brochure

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

View Brochure

Springs and Hardware

Commercial Hardware

Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.

14-gauge hinges
Commercial 10-ball steel rollers with options for nylon tire rollers
10,000 cycle torsion springs
Steel step plate and lift handle for simplified operation
Inside slide lock for improved security
19 gauge steel hinge support plates
18-gauge single end stiles; 16-gauge double end stiles
Galvanized aircraft cables with 7:1 safety factory
2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Applications

Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options.

Commercial Torsion Springs

Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.
